Make Noise XOH - miX Out Headphone
- Regular price
- $110.00
- Sale price
- $110.00
- Regular price
-
- Unit price
- per

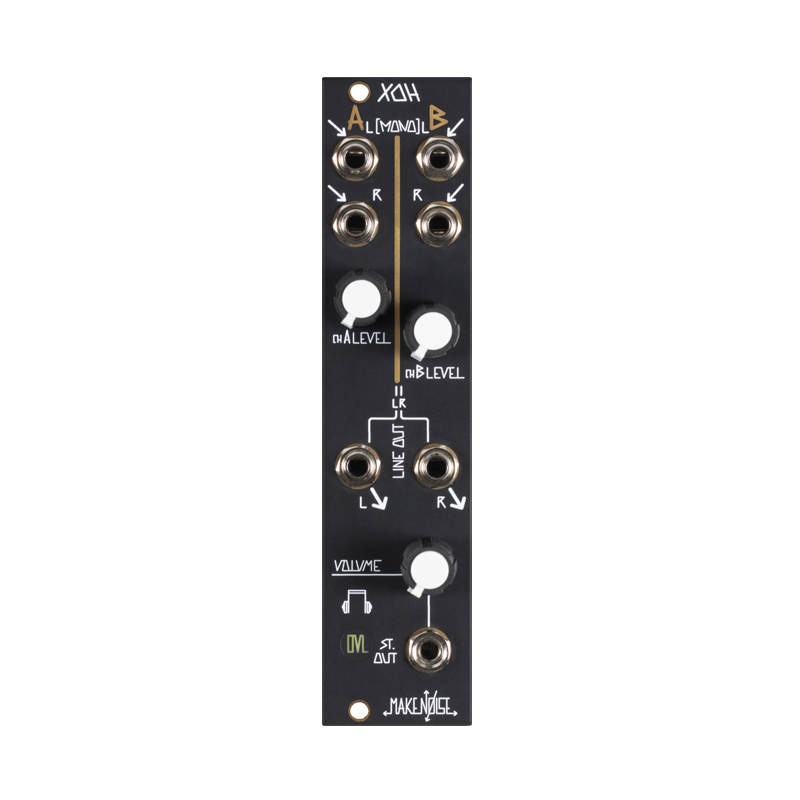

The XOH (miX Out Headphone) music synthesizer module is a stereo mixer, headphone amplifier and output interfacing module for your modular synthesizer. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.
The XOH (miX Out Headphone) music synthesizer module is a stereo mixer, headphone amplifier and output interfacing module for your modular synthesizer. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.
- Works well with stereo modules: EV, MG, QPAS, X-PAN, MP
- Two mono/stereo input channels, ChA & ChB
- Independent level controls for ChA & Ch B
- Two stereo outputs containing A/B mix
- Independent unity gain L/R Line Level outputs
- TRS Headphone and Line Level output with level control (same line drive circuit used in the CV Bus Case)
- Adjust Modular Level signals down to Line Level with soft Limiting to protect your ears and line level gear
Width: 6HP
Power: 40mA @+12V, 40mA @-12V
