WMD

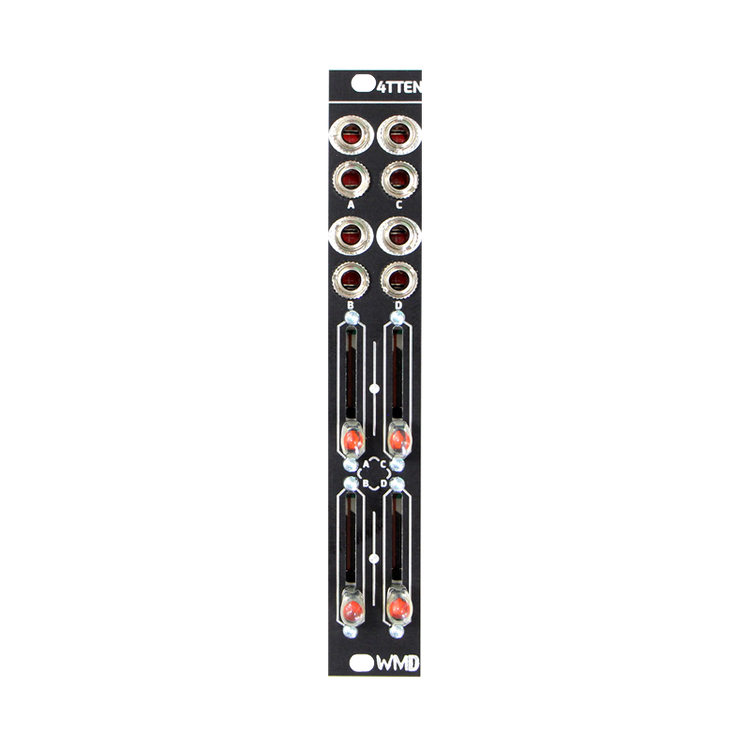

WMD 4TTEN 4-CH Attenuator and Offset

--

$99.00

In Stock
4TTEN (pronounced either ATTEN or FOUR-TEN) is a four channel attenuator and offset generator.

Use 4TTEN to attenuate any CV or audio signal by running through the ins and outs.

A +5V voltage source is normalled to each input, making it a standalone offset when there is no cable patched into an input.

Each channel is completely independent.

Ever-so-useful in live performance, we designed this module with 4 sliders for easy maneuverability, visual feedback, and enjoyable to play interface. Make your eurorack modular synthesizer system more playable with 4TTEN!

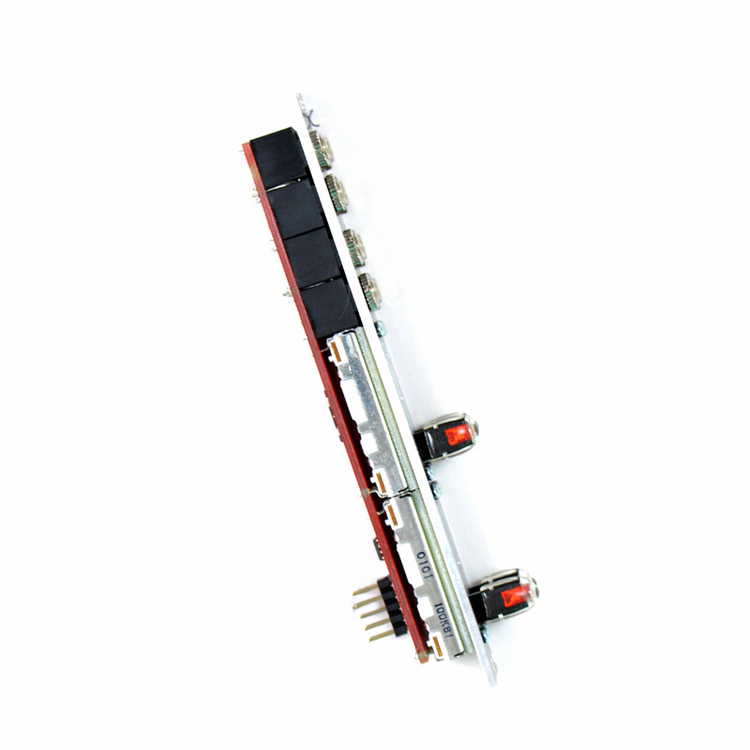

*** 4TTEN's PCB is 113mm (4.45") tall and may be a tight fit in some cases ***

4TTEN (pronounced either ATTEN or FOUR-TEN) is a four channel attenuator and offset generator.Use 4TTEN to attenuate any CV or audio signal by running through the ins and outs. A...

« less

more »

Width: 4HP
Max Depth: 30mm
Power: 5mA@ +12V , 5mA@ -12V , 0mA@ +5V

Features

  • 4 independent attenuators for Control Voltage and Audio signals
  • Performance friendly sliders
  • Can be used as 0 to +5V Offset
  • Virtually no drop on 1V/Oct signals.
  • Comfortable fader caps from the Performance Mixer
