Intellijel

Intellijel uVCF

--

$160.00

In Stock

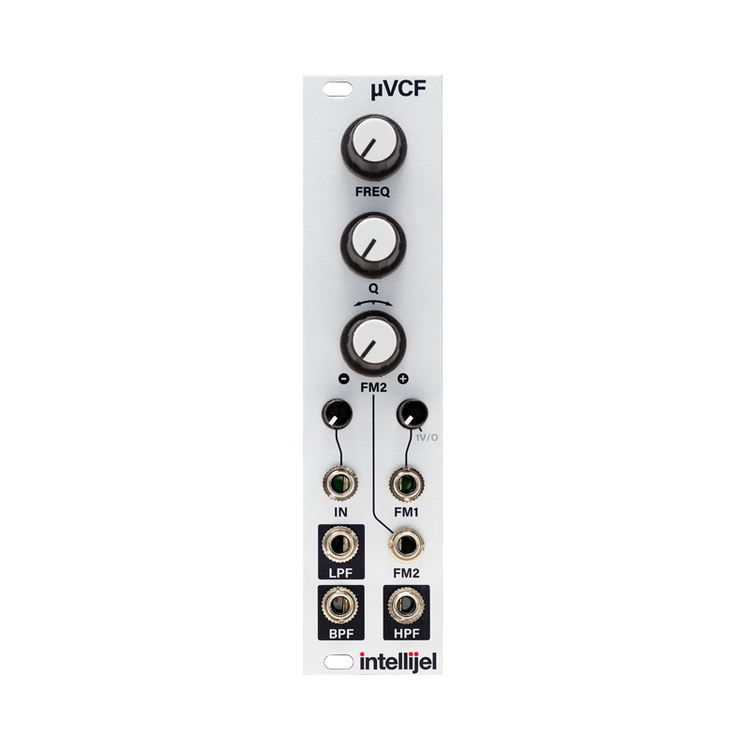

Introducing the µVCF state variable filter.

This is another great David Dixon filter design that has been on the workbench for a while. It is a very clean and precise filter that also doubles as an excellent sine VCO.

It responds very well to FM and the small size makes it a nice choice for smaller system.



Introducing the µVCF state variable filter. This is another great David Dixon filter design that has been on the workbench for a while. It is a very clean and precise filter...

« less

more »

Width: 6HP
Max Depth: 21mm
Power: 25mA@ +12V , 24mA@ -12V , 0mA@ +5V

Features

  • Low pass (LPF) 2-pole, high pass (HPF) 2-pole and bandpass outputs (BPF) 1-pole.
  • FM1 input acts as 1V/Oct when full CW. Tracks very well over 4+ octaves
  • FM2 input has a bipolar attenuator
  • At full Q you get very low distortion sinewaves with a range of 2Hz to 20Khz
