Tall Dog uBraids SE (Black)

Tall Dog uBraids SE (Black)

Write a review
Regular price
$279.00
Sale price
$279.00
Regular price

/ /

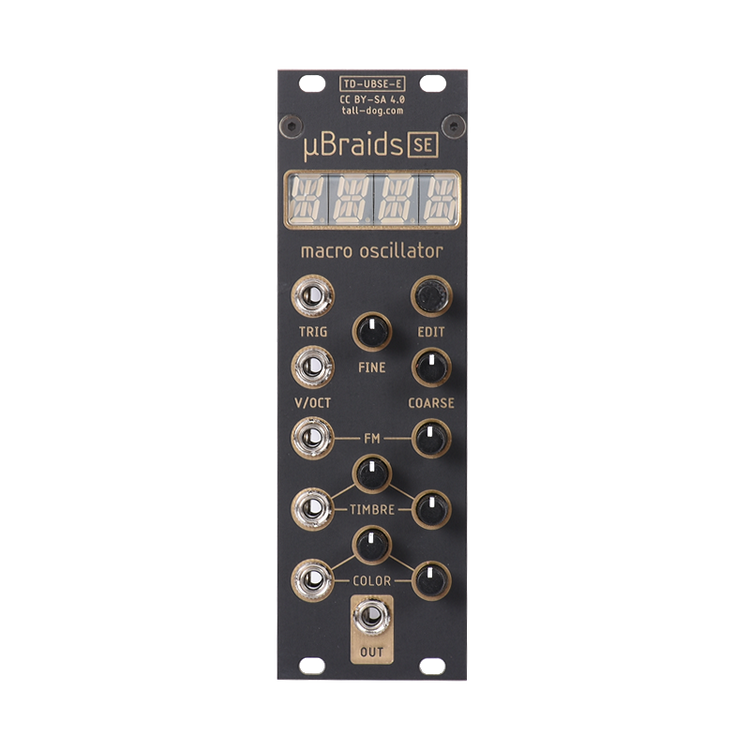

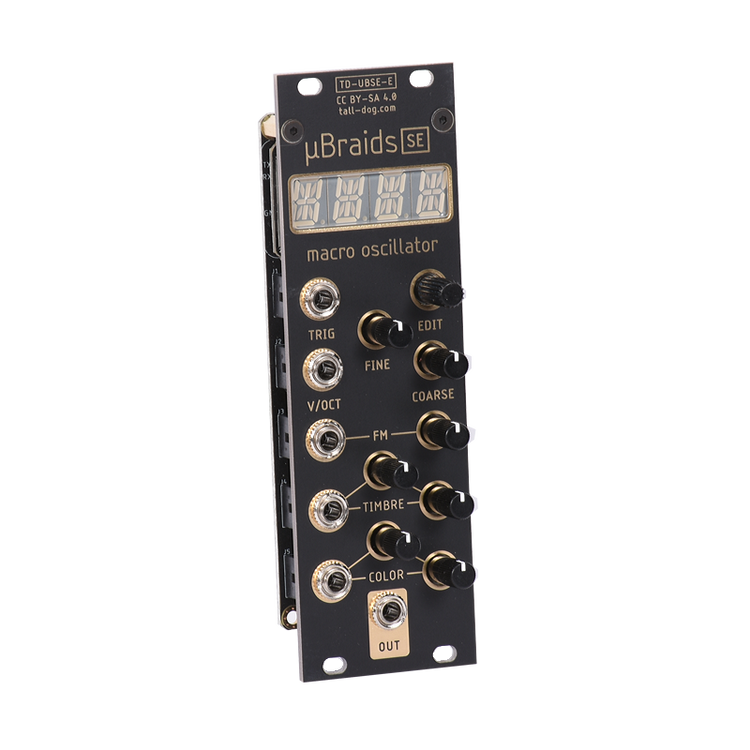

µBraids SE (aka uBraids SE or microBraids SE) is a voltage-controlled digital oscillator/sound source in 8HP with a wide range of creative and useful sound generation algorithms (aka models).

This re-engineered Eurorack module updates and simplifies the classic Mutable Instruments Braids design with a custom brilliant orange LED display module protected by a clear acrylic lens, a low-profile rotary encoder, and an added attenuverter.

This redesigned µBraids SE (Special Edition) is a new revision of µBraids that updates and simplifies the component layout and has a new panel design. It utilizes a custom miniature segmented LED module, eliminating the need for a 2nd microprocessor and its supporting circuitry. µBraids SE remains fully compatible with future upstream Braids firmware upgrades and any other alternate firmwares that are compliant with the standard Braids design.

Included Parts
µBraids SE includes a standard 16-pin to 10-pin Eurorack power cable and two sets of mounting screws for racks/enclosures with either M2.5 or M3 threads.

History
The original Braids was designed by Olivier Gillet of Mutable Instruments under a CC BY-SA 3.0 license. Braids is a macro-oscillator with multiple intricate digital synthesis algorithms. Each algorithm is controlled by two continuously variable parameters, both of which are voltage controllable. It is available as a 16HP Eurorack module. (Source)


The original microBraids (aka µBraids) is a full-functionality adaptation of Braidsdesigned by Magpie Modular and Neutron Sound and is available only as a bare PCB (printed circuit board). It is 8HP (exactly half the original width) and features an OLED display driven by a 2nd processor. Nothing else has been altered component-wise so any future firmware upgrades or alternate firmware such as Bees-in-the-Trees will work fine. (Source)

Attributions
Designed by Michael & Daniel Gilbert of Tall Dog Electronics in Western Massachusetts
Based on the microBraids (aka µBraids) module designed by Magpie Modular and Neutron Sound
Based on the Braids module designed by Olivier Gillet of Mutable Instruments
Manufactured by CircuitHub via Worthington Assembly in South Deerfield, Massachusetts
Licensed under the Creative Commons Attribution-ShareAlike 4.0 International Public License
Source materials are available on GitHub

µBraids SE (aka uBraids SE or microBraids SE) is a voltage-controlled digital oscillator/sound source in 8HP with a wide range of creative and useful sound generation algorithms (aka models).

This re-engineered Eurorack module updates and simplifies the classic Mutable Instruments Braids design with a custom brilliant orange LED display module protected by a clear acrylic lens, a low-profile rotary encoder, and an added attenuverter.

This redesigned µBraids SE (Special Edition) is a new revision of µBraids that updates and simplifies the component layout and has a new panel design. It utilizes a custom miniature segmented LED module, eliminating the need for a 2nd microprocessor and its supporting circuitry. µBraids SE remains fully compatible with future upstream Braids firmware upgrades and any other alternate firmwares that are compliant with the standard Braids design.

Included Parts
µBraids SE includes a standard 16-pin to 10-pin Eurorack power cable and two sets of mounting screws for racks/enclosures with either M2.5 or M3 threads.

History
The original Braids was designed by Olivier Gillet of Mutable Instruments under a CC BY-SA 3.0 license. Braids is a macro-oscillator with multiple intricate digital synthesis algorithms. Each algorithm is controlled by two continuously variable parameters, both of which are voltage controllable. It is available as a 16HP Eurorack module. (Source)


The original microBraids (aka µBraids) is a full-functionality adaptation of Braidsdesigned by Magpie Modular and Neutron Sound and is available only as a bare PCB (printed circuit board). It is 8HP (exactly half the original width) and features an OLED display driven by a 2nd processor. Nothing else has been altered component-wise so any future firmware upgrades or alternate firmware such as Bees-in-the-Trees will work fine. (Source)

Attributions
Designed by Michael & Daniel Gilbert of Tall Dog Electronics in Western Massachusetts
Based on the microBraids (aka µBraids) module designed by Magpie Modular and Neutron Sound
Based on the Braids module designed by Olivier Gillet of Mutable Instruments
Manufactured by CircuitHub via Worthington Assembly in South Deerfield, Massachusetts
Licensed under the Creative Commons Attribution-ShareAlike 4.0 International Public License
Source materials are available on GitHub

µBraids SE (aka uBraids SE or microBraids SE) is a voltage-controlled digital oscillator/sound source in 8HP with a wide range of creative and useful sound generation algorithms (aka models). This...
