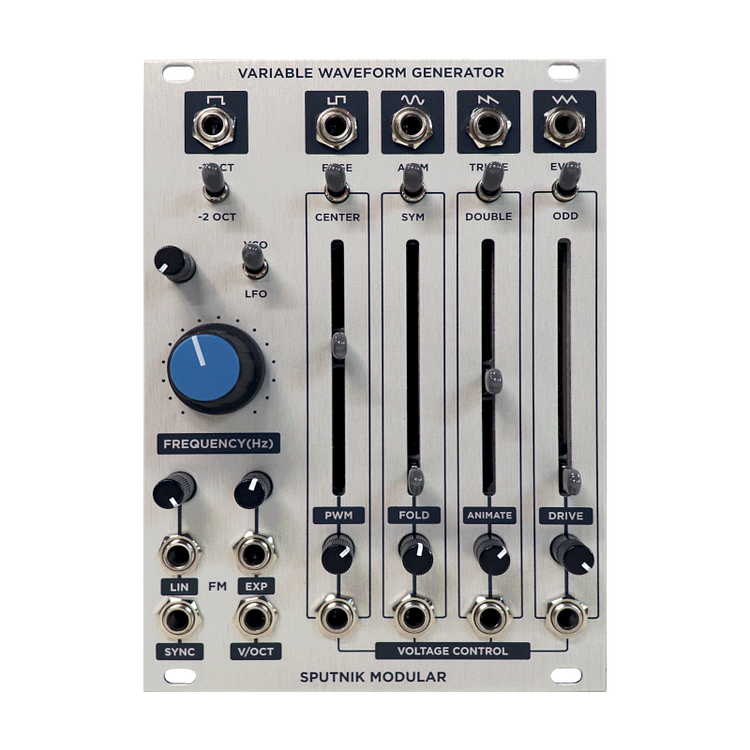

The Sputnik Variable Waveform Generator is a Buchla inspired discrete triangle core oscillator. One major change is the inclusion of a hard sync vs. the typical triangle core soft sync. The module features 5 dedicated audio outputs (sub, pulse, sine, saw and triangle) and various animation controls such as built-in waveshaper, saw animator and drive circuits with attenuation amount inputs. It also has a vco/lfo switch, both linear and exponential FM inputs with attenuators and very good tracking.

Sine:

• Slider controls the level of wave-folding. Outputs a standard sine wave when slider is down, full effect when all the way up.
• SYM: 98-99% symmetrical wave folding.
• ASYM: Increased asymmetrical wave folding as the effect level is increased.

Sine Wave Fold CV:

• Positive CV increases the effect.
• Negative CV will duck the sine in a very exponential manner when the slider is low. Audio rate ducking produces a pseudo ring modulation effect.
• The slider behaves as an offset for CV and an attenuator is provided.

Sawtooth:

• Slider controls the position of additional saw waves for an animation effect.
• Double: a double sawtooth wave. Max levels can exceed 16Vpp.
• Center Position: no animation, just sawtooth.
• Triple: a triple sawtooth wave. Max levels can exceed 19Vpp.

Sawtooth Animate CV:

• Slider behaves as an offset; any CV level can be used. CV attenuator provided.

Triangle:

• Slider controls the overdrive. Outputs standard Triangle when the slider is down, full effect when all the way up.
• ODD: typical soft saturation overdrive on top and bottom peaks.
• EVEN: an asymmetrical soft saturation overdrive– increases width and drive of the top side while decreasing the width and overdriving the lower substantially less, producing more even harmonics.

Triangle Drive CV:

• Positive CV increases the effect.
• Negative CV will duck the Triangle in a very exponential manner when the slider is low. Audio rate ducking produces a pseudo ring modulation effect.
• The slider behaves as an offset for CV and an attenuator is provided.


Pulse:

• Slider controls the pulse width. Center position produces a 50/50 pulse.
• EDGE: standard PWM between upper and lower wave cycles. Approximately 10/90% duty cycle with slider.
• CENTER: PWM between rising and falling edges of the pulse. Approximately 10/90% duty cycle with slider.

PWM CV:

• EDGE: positive CV increases top side duty, Negative CV increases bottom side duty.
• CENTER: positive and Negative CV have same effect on top and bottom side duty reduction.
• Higher CV levels or CV + slider offset can increase/decrease the duty cycle to 100/0% for a gated VCA effect.

SUB:

• -1 or -2 octave pulse.
