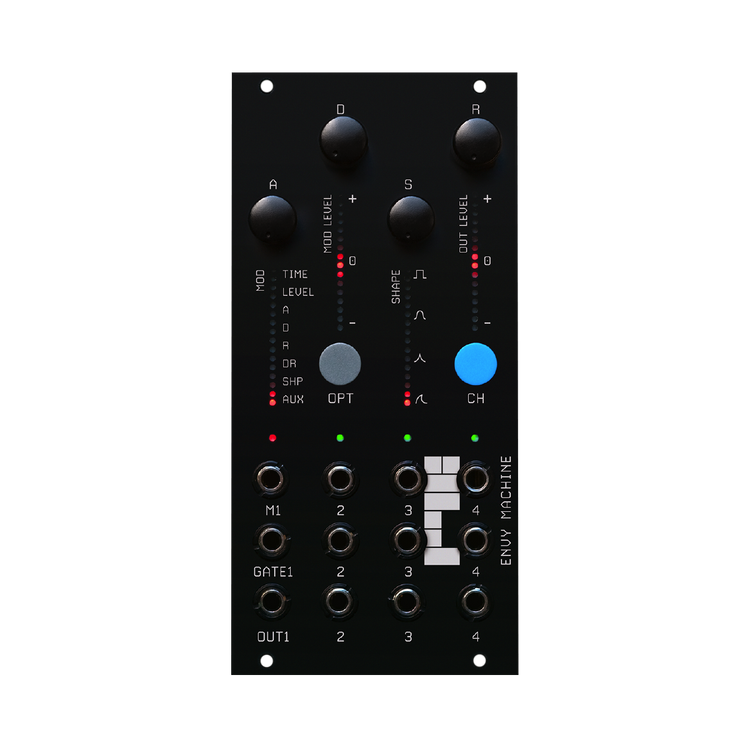

RYK Modular Envy Machine - Quad Envelope Modulation Monster
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
- Unit price
- per
Envy for Envelopes?
Lusting for LFO's,
Random Voltages and Knob Recording?
Welcome to the ENVY MACHINE!
A compact quad-channel modulation machine, with an envious array of Envelopes, LFOs, Random voltages, and Knob Recording!
OVERVIEW
Each of the four channels on the ENVY MACHINE can be set to one of five super flexible modulation modes:
- ADSR Envelope
- AD Envelope
- AD LFO
- Random Voltage
- Recordable Knob Voltage Control
Ghost hand - Parameters can be animated using KNOB RECORDING to create timed
variations in your patch. With dedicated MOD inputs per channel, you can use an external CV to control anything - TIME, LEVEL, WAVESHAPE, colour of your hair etc . . .
Polarity paradox - Modulation inputs AND channel Outputs come with bipolar attenuverters, now you can choose either BIPOLAR or UNIPOLAR, with continuously variable level control.
Slippery slopes - WAVESHAPE of envelopes and LFOs isfully variable between LOG, EXPO, SIN, TRAPEZOID, and SQUARE, for every slope imaginable.
Time Range:
7 minutes to 6 milliseconds
Output Voltage Ranges:
Envelopes: 0–8V (or inverted: 8V–0V)
LFO/Random: 0–8V (Unipolar) or -5V–+5V (Bipolar)
Envy for Envelopes?
Lusting for LFO's,
Random Voltages and Knob Recording?
Welcome to the ENVY MACHINE!
A compact quad-channel modulation machine, with an envious array of Envelopes, LFOs, Random voltages, and Knob Recording!
OVERVIEW
Each of the four channels on the ENVY MACHINE can be set to one of five super flexible modulation modes:
- ADSR Envelope
- AD Envelope
- AD LFO
- Random Voltage
- Recordable Knob Voltage Control
Ghost hand - Parameters can be animated using KNOB RECORDING to create timed
variations in your patch. With dedicated MOD inputs per channel, you can use an external CV to control anything - TIME, LEVEL, WAVESHAPE, colour of your hair etc . . .
Polarity paradox - Modulation inputs AND channel Outputs come with bipolar attenuverters, now you can choose either BIPOLAR or UNIPOLAR, with continuously variable level control.
Slippery slopes - WAVESHAPE of envelopes and LFOs isfully variable between LOG, EXPO, SIN, TRAPEZOID, and SQUARE, for every slope imaginable.
Time Range:
7 minutes to 6 milliseconds
Output Voltage Ranges:
Envelopes: 0–8V (or inverted: 8V–0V)
LFO/Random: 0–8V (Unipolar) or -5V–+5V (Bipolar)
- Envelopes: 1.5ms – 4min
- LFO: 88hz – 7min
- Random: 2khz - 2min
- Output Voltage Ranges:
- Envelopes: 0/8V (inverted: 8V/0V)
- LFO/Random: 0/8V (Unipolar) or -5V/+5V (Bipolar)
- Input Voltage Range:
- -5V / +5V
Width: 12HP
Max Depth: 25mm
Power: 70mA @+12V, 5mA @-12V, 0mA @+5V
