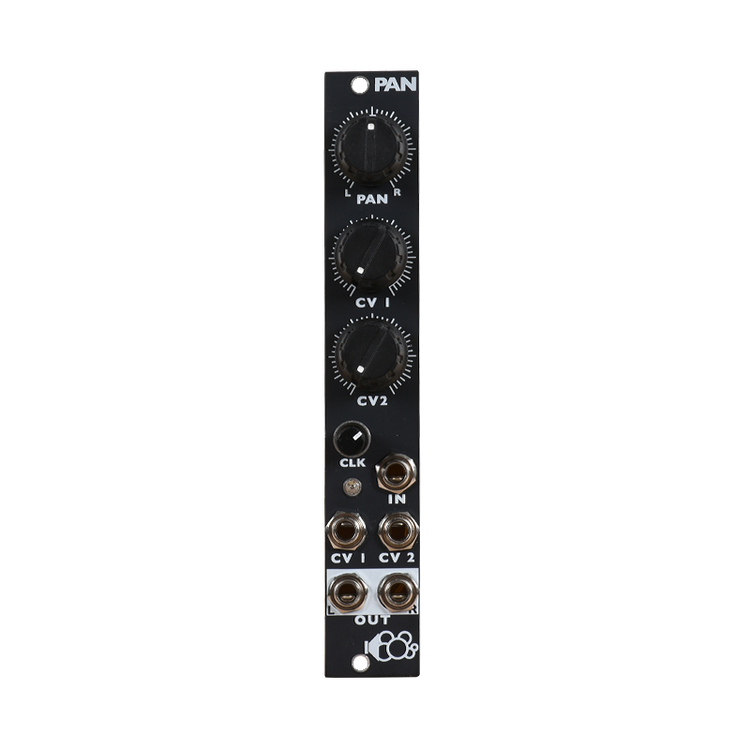

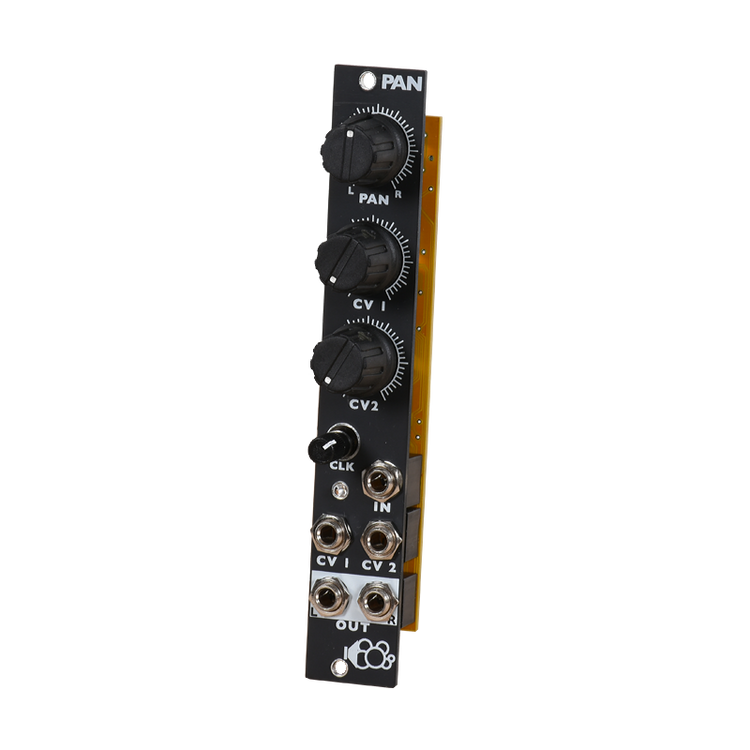

PAN is a single input panning module. The CLK pot is the rate for a built in LFO with a range of 15 seconds to 175Hz. The LFO’s triangle output is normalized to CV1. Since PAN is based around a pair of VCAs when the CV inputs are at audio rate it becomes a slightly unpredictable ring modulator with a pair of outputs.

The input is DC coupled so the PAN module is equally good for panning an LFO to 2 different destinations as it is for panning audio from left to right.

When the Pan pot is centered and a +-5V modulator is plugged in and the CV pot at 100% the input will swing from fully left to full right.
