Ieaskul F. Mobenthey Mr. Grassi Module
¡¡ the RED STRIPE on the ribbon cable is oriented to +12v !!
Grassi, a touch-module, contains twelve square waves, used as the clock and data for shift registers, each followed by primitive resistor DAC. The DACs modulate clock and counter-clock wise, yielding closed loops of perpetual modulation, triggered by touch. Each of the six outputs are a single, four-bit DAC. Listening to them raw, they generate modem sounds to pure noise on touch. On release of touch, each DAC holds the contingent position of its DATA. Thus the DATA can be used as CV for up to six other operators, scrambled on touch. Touch->Scramble->Listen; Untouch->Hold->Feed.
Grassi, an ultra-raftable module, features all circuitry and the front panel on one circuit board. The final module thickness is only as deep as the 3.5mm jacks- not more than about a centimeter, so it can fit in a thin wooden case.
Grassi is a 12HP Eurorack module that runs on +12 and -12 volts. Actually it completely shuns the negative twelve volts, and thus it can run from a unipolar, plus twelve supply. This helps make it raftable, as it only requires a branch power line from the increasingly common 12V trunk. Thus, when ordered with a wooden case, it has a 2.1mm, tip positive, 12 V jack to power it. For mounting in a traditional Eurorack case, it comes
with a power connector traditional to that format.

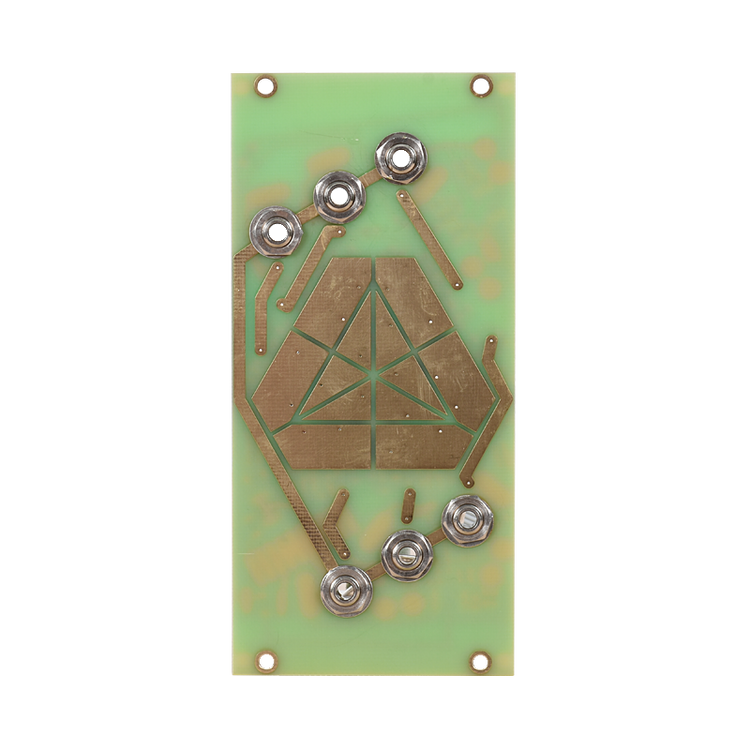

Grassi features a triangular hexagon, used for square-wave outputs (outer rim) and DAC triggers (inner core). Thus, a triggering touch should connect an outer station to an inner station, to begin the rungling process.
Rungling, a coin of Rob Hordijk, is exactly what Mister Grassi does. He takes two oscillators and mixes them in the shift register chip, treating one as data and the other as clock. The result, a memory heterodyne, feeds back into the oscillators. This circular process traverses both analog and digital, soft tones and square drones.
