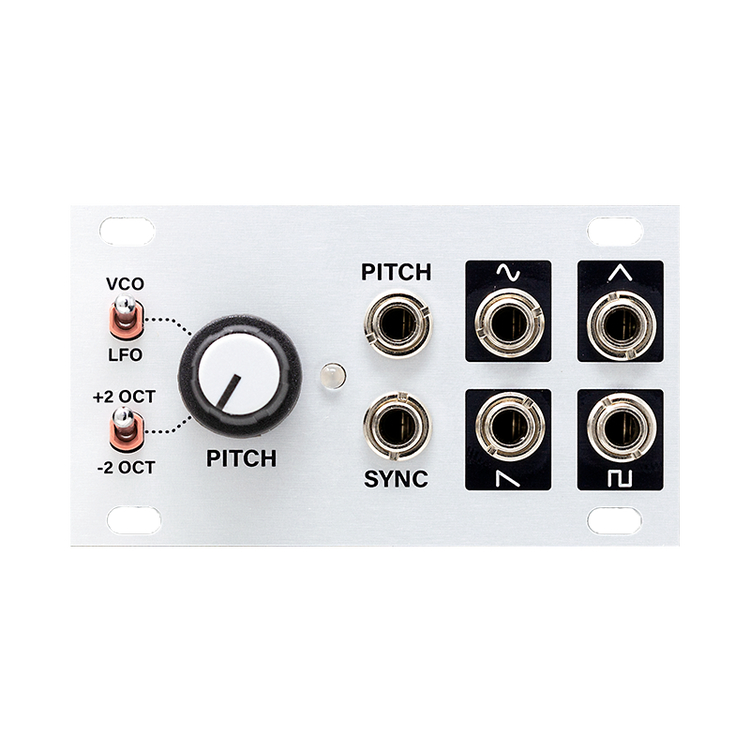

Intellijel VCO 1U
Write a review
- Regular price
- $149.00
- Sale price
- $149.00
- Regular price
-
- Unit price
- per
Mighty oscillations, mini size.
A triangle core, Syncable, Multi-Waveform Analog Oscillator & LFO in an extremely compact form factor.
Perfect as a utility modulation source but equally capable to be used as a primary sound source. Patch it up and let it rip!
A triangle core, Syncable, Multi-Waveform Analog Oscillator & LFO in an extremely compact form factor.
Perfect as a utility modulation source but equally capable to be used as a primary sound source. Patch it up and let it rip!
Mighty oscillations, mini size.
A triangle core, Syncable, Multi-Waveform Analog Oscillator & LFO in an extremely compact form factor.
Perfect as a utility modulation source but equally capable to be used as a primary sound source. Patch it up and let it rip!
A triangle core, Syncable, Multi-Waveform Analog Oscillator & LFO in an extremely compact form factor.
Perfect as a utility modulation source but equally capable to be used as a primary sound source. Patch it up and let it rip!
Mighty oscillations, mini size. A triangle core, Syncable, Multi-Waveform Analog Oscillator & LFO in an extremely compact form factor.Perfect as a utility modulation source but equally capable to be used...
- Four simultaneous pure waveforms: Sine, Triangle, Square and Sawtooth
- Pitch input for 1V/Oct tracking and FM
- SYNC input for Hard Sync. This input has a comparator so that you can use a variety of waveforms as triggers.
- Switch to select VCO (audio) or LFO range of operation
- Three position Octave switch to jump pitch up or down by two octaves
- PITCH knob has three octave range in VCO mode (extended to seven with the octave switch) and seven octave range in LFO mode (extended to 11 with the octave switch).
- Bicolor led indicates the state of the triangle core rate
Width: 14HP
Max Depth: 38mm
Power: 19mA @+12V, 16mA @-12V
