Intellijel TPS80W Triple Power Supply - TYPE A
Write a review
- Regular price
- $240.00
- Sale price
- $240.00
- Regular price
-
- Unit price
- per

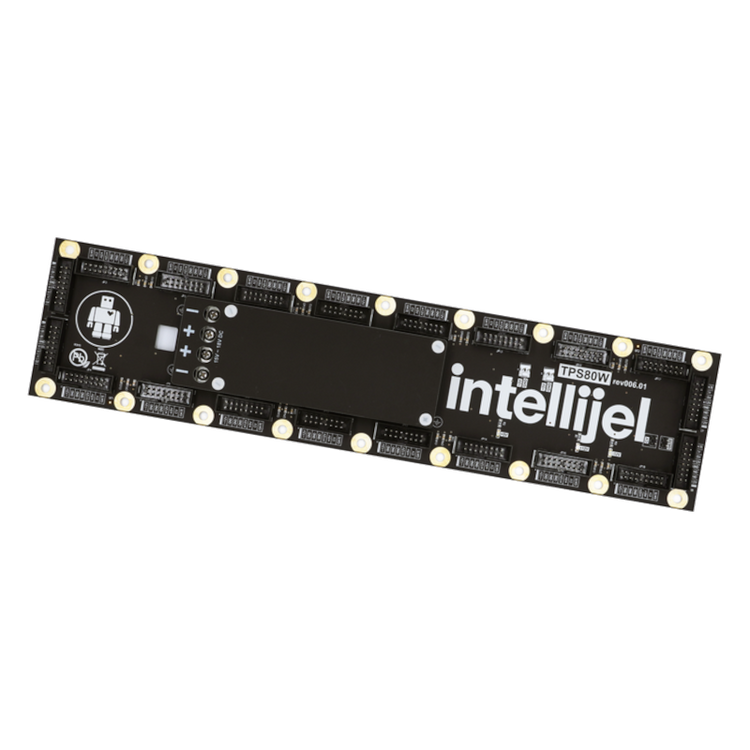

The TPS80W is a high power, super efficient and low noise studio grade power system for your Eurorack Modular. We carefully designed this power supply to perform optimally with even the most demanding, noisy and power hungry modules in your rig. The TPS80W is recommend for cases up to 6U x 104HP in size.
The TPS80W is a high power, super efficient and low noise studio grade power system for your Eurorack Modular. We carefully designed this power supply to perform optimally with even the most demanding, noisy and power hungry modules in your rig. The TPS80W is recommend for cases up to 6U x 104HP in size.
The TPS80W is a high power, super efficient and low noise studio grade power system for your Eurorack Modular. We carefully designed this power supply to perform optimally with even...
- 80 Watt integrated switching power supply
- Low impedance star distribution due to 4 layer PCB
- +12V output at 3000 mA, -12V output at 3000 mA, +5V output at 1500 mA
- Triple 120° phased controller for low induced noise
- Output short circuit protection and foldback current limiting
- Output overvoltage protection from transient overshooting
- Soft start for controlled start up operation
- +/-1% output voltage accuracy
- Fits comfortably in an 84HP 3U case or 6U case and larger
- 34cm wide x 8cm tall and max height of 20mm.
- Mounting holes can be used with 0.157″ / 4mm PEM snaps for quick install.
