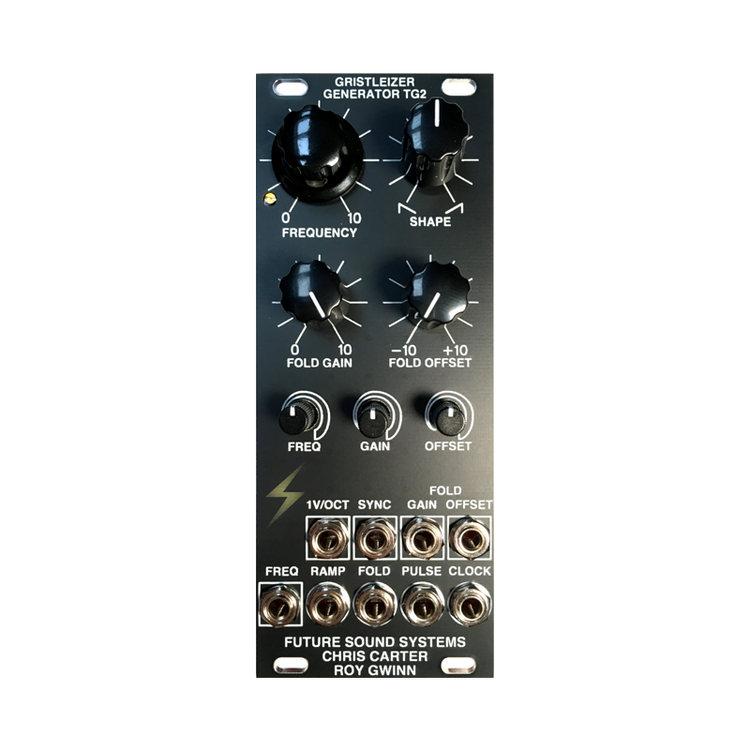

Future Sound Systems TG2 Gristleizer Generator VCO
The core of the oscillator is based around a shape-variable ramp generator, with similar functionality to that found in the Korg MS Modulation Generators. Here, the Shape control takes the Ramp output from a descending sawtooth, through triangle, to an ascending sawtooth shape. This varying ramp waveform is then input to a wave-folder, which outputs both Fold and Pulse waveforms, based on how the Gain and Offset controls are set. Lastly, the original ramp waveform is fed into a comparator for the Clock output, the pulsewidth of which is variable using the Shape control.
The Gain and Offset of the TG2's wave-folder are both voltage controllable, as well as its Frequency via an attenuated control input and a 1V/Oct control input. The TG2 can also be reset by external sources via the Sync input.
The Gristleizer Generator has been designed to replicate the original functionality of the Gristleizer's oscillator section, but with many new additions. With a brand new design from Roy Gwinn, the...
