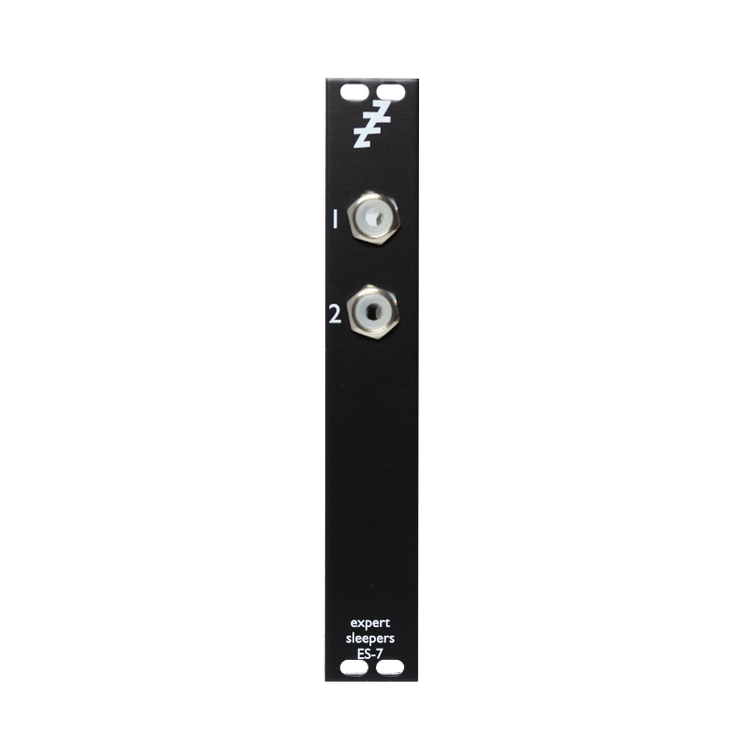

Expert Sleepers ES-7 MK2
Write a review
- Regular price
- $99.00
- Sale price
- $99.00
- Regular price
-
- Unit price
- per
The ES-7 provides two channels of DC-coupled CV input to a connected ES-4, ES-40 or ES-6 module.
When used with an ES-4 or ES-40, the ES-7's inputs are provided on the ES-4's S/PDIF output jack. When used with an ES-6, the ES-7's inputs provide channels 7 & 8 of the ES-6's 8 channel lightpipe output.
When used with an ES-4 or ES-40, the ES-7's inputs are provided on the ES-4's S/PDIF output jack. When used with an ES-6, the ES-7's inputs provide channels 7 & 8 of the ES-6's 8 channel lightpipe output.
The ES-7 provides two channels of DC-coupled CV input to a connected ES-4, ES-40 or ES-6 module.
When used with an ES-4 or ES-40, the ES-7's inputs are provided on the ES-4's S/PDIF output jack. When used with an ES-6, the ES-7's inputs provide channels 7 & 8 of the ES-6's 8 channel lightpipe output.
When used with an ES-4 or ES-40, the ES-7's inputs are provided on the ES-4's S/PDIF output jack. When used with an ES-6, the ES-7's inputs provide channels 7 & 8 of the ES-6's 8 channel lightpipe output.
The ES-7 provides two channels of DC-coupled CV input to a connected ES-4, ES-40 or ES-6 module.When used with an ES-4 or ES-40, the ES-7's inputs are provided on the...
- Digital I/O: connection from ES-4, ES-40 or ES-6 module
- Analogue inputs: 2x 3.5mm jacks, DC-coupled
- Input voltage range: ±10V
- Input impedance: 100kOhms
- A/D conversion: 24 bit, 103dB SNR typical
Width: 4HP
Max Depth: 50mm
Power: 35mA @+12V, 17mA @-12V, 0mA @+5V
