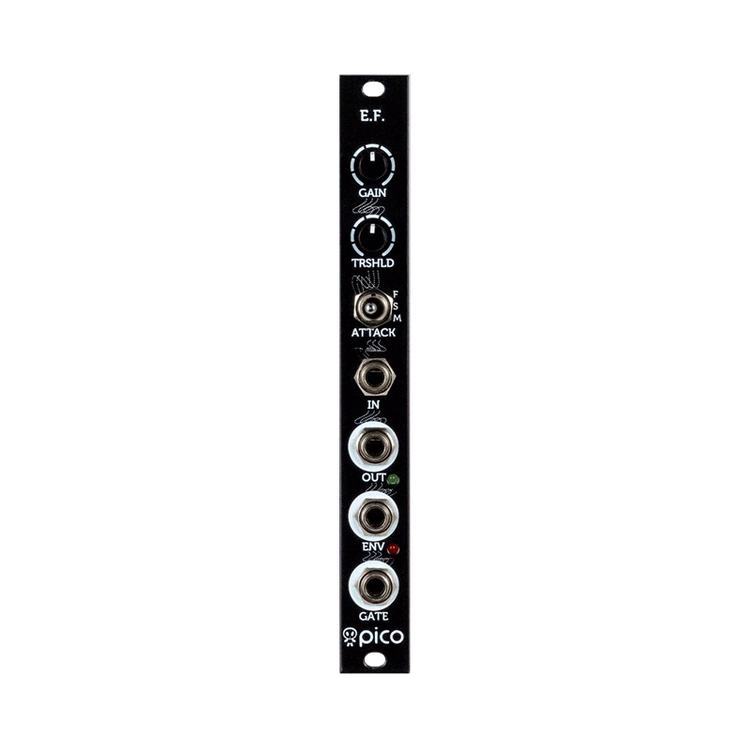

Pico EF is Erica Synths take on envelope follower module in 3hp! Pico EF features a preamp with +40dB gain (enough to boost even guitar and dynamic microphone signals for use in a modular system), envelope output with adjustable attack time and a gate output with adjustable threshold. The Pico EF can be used as a preamp, overdrive unit or for controlling VCFs with audio signal, or to use with external instruments to control your modular system in other creative and experimental applications.
Pico EF is Erica Synths take on envelope follower module in 3hp! Pico EF features a preamp with +40dB gain (enough to boost even guitar and dynamic microphone signals for use in a modular system), envelope output with adjustable attack time and a gate output with adjustable threshold. The Pico EF can be used as a preamp, overdrive unit or for controlling VCFs with audio signal, or to use with external instruments to control your modular system in other creative and experimental applications.
Pico EF is Erica Synths take on envelope follower module in 3hp! Pico EF features a preamp with +40dB gain (enough to boost even guitar and dynamic microphone signals for...
- Preamp with adjustable gain
- Audio overdrive possibility
- Envelope follower with adjustable attack time
- Gate extractor with adjustable threshold
- Input protection against overvoltage
- Protection against reverse PSU connection
- Preamp boost up to +40dB
- Audio output level: 10Vptp
- Envelope output level: 0 - +10V
- Gate level: +5V
Width: 3HP
Max Depth: 35mm
Power: 25mA @+12V, 15mA @-12V
