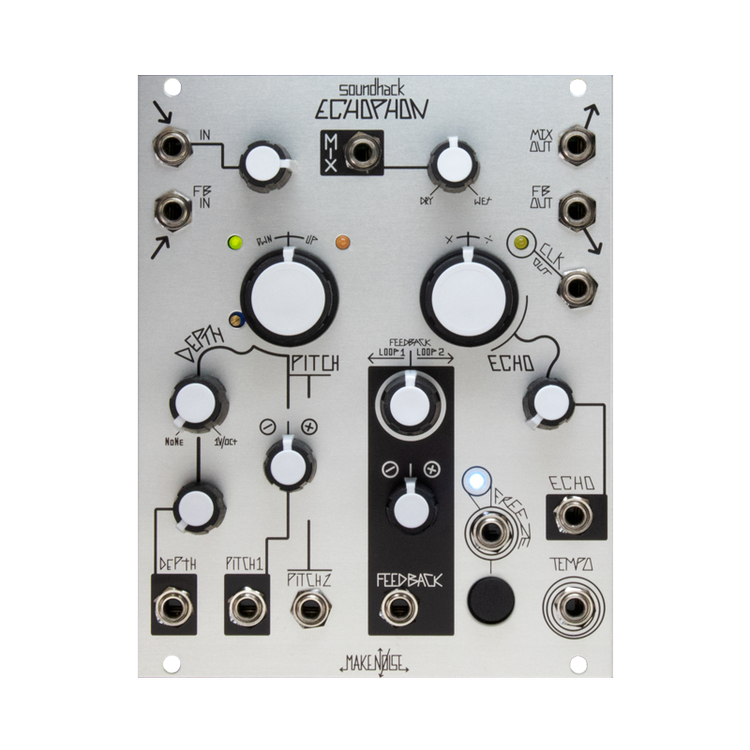

Echophon

Make Noise

Make Noise Echophon

--

$399.00

In Stock
Pitch Shifting Echo with smooth Time Modulation, Tempo Sync, saturating Feedback and a unique Pitch Shifting algorithm inspired by the Springer Tempophon and lovingly engineered by DSP Guru Tom Erbe of soundhack. "...the most inspiring module of the year." -Electronic Musician.

Pitch Shifting Echo with smooth Time Modulation, Tempo Sync, saturating Feedback and a unique Pitch Shifting algorithm inspired by the Springer Tempophon and lovingly engineered by DSP Guru Tom Erbe...

« less

more »

Width: 20HP
Max Depth: 30mm
Power: 70mA@ +12V , 40mA@ -12V , 0mA@ +5V

Features

  • Shift Pitch of signal +/- 2 Octaves
  • Exponential control of delay time -Maximum Time 1.7 Seconds, Minimum Time 7 ms
  • Tempo input allows synchronization of Echoes to multiple or division of an external Clock
  • Two independent internal digital Feedback paths (Loop 1 and Loop 2)
  • External Analog Feedback Path for filtered or processed echoes
  • FREEZE button/ gate input allows for hold, stutter and sampling techniques
  • 24 bit ADC/DAC, 32bit processing, 16bit delay storage operating at 40khz
  • Vactrol based Mix circuit for smooth blending of dry and wet signals
  • All Analog Dry Signal Path
  • Voltage Control over ALL parameters
  • Pairs well with the Phonogene
