Make Noise Brains

--

$120.00

In Stock

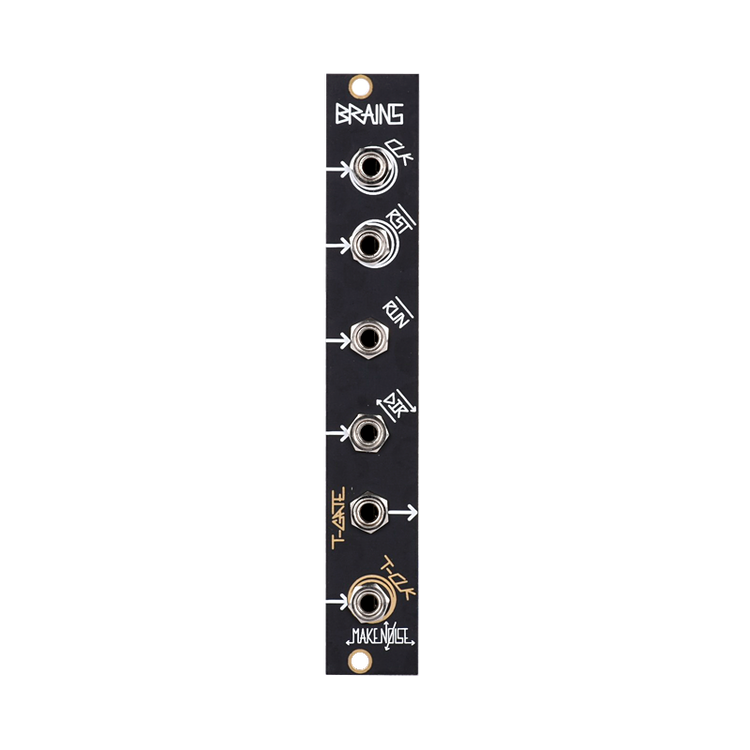

BRAINS is a clocked sequential binary event machine. It is designed to be connected to one or two Pressure Points to form a 4 or 8-Step 3-channel analog sequencer. Classic synthesis control!

BRAINS is a clocked sequential binary event machine. It is designed to be connected to one or two Pressure Points to form a 4 or 8-Step 3-channel analog sequencer. Classic...

« less

more »

Width: 4HP
Max Depth: 36mm
Power: 10mA@ +12V , 0mA@ -12V , 0mA@ +5V

Features

  • Voltage Control over Direction, RUN/ Stop and ReSeT
  • Pressure Points provides data input to BRAINS in the form of touch selectable ReSeT and Hold stages and patchable ReSeT Pulses per stage
  • Pressure Points provides the tuned voltages per stage
  • The Touch-GATE OUT produces a Gate HIGH signal whenever a Pressure Points is touched
  • Maximum number of Pressure Points that may be connected to a BRAINS is two
  • Ships with all cables needed for expansion of one or two Pressure Points
  • Pairs only with Pressure Points
