ALM Busy Circuits Pip Filter
- Regular price
- $145.00
- Sale price
- $145.00
- Regular price
-
- Unit price
- per

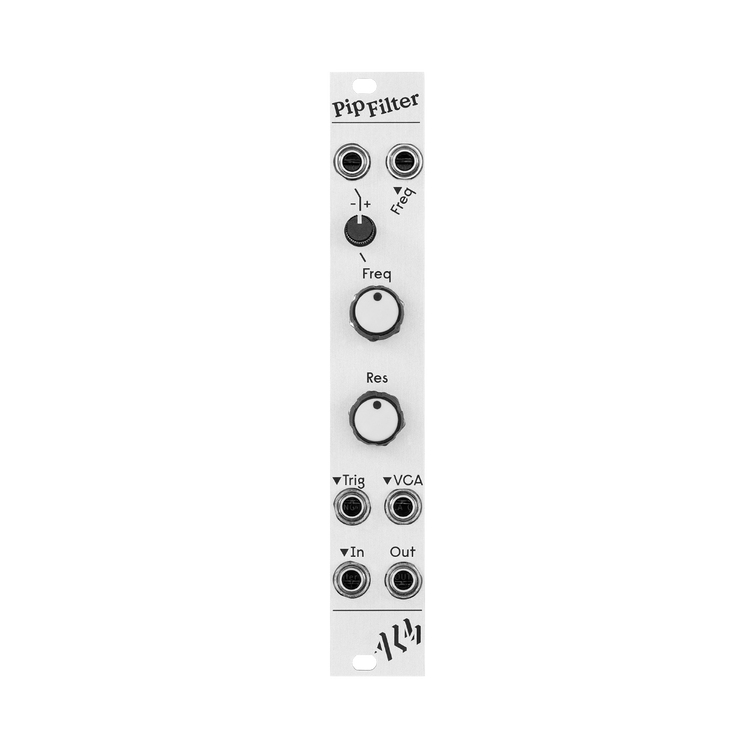

The ’Pip Filter’ is a compact 4HP voltage controlled 2 pole low-pass filter with resonance, a ’pingable’ trigger input and built in VCA. Filter cutoff is controlled via both knob control and dual CV inputs with a built in attenuverter. Resonance is manually controlled and will reach into self oscillation with rough V/Oct tracking.
A trigger input allows the filter to be pinged for percussive plucked type sounds. Finally, a built in VCA (normalled open) allows for additional independent amplitude control of the filtered signal.
The ’Pip Filter’ is a compact 4HP voltage controlled 2 pole low-pass filter with resonance, a ’pingable’ trigger input and built in VCA. Filter cutoff is controlled via both knob control and dual CV inputs with a built in attenuverter. Resonance is manually controlled and will reach into self oscillation with rough V/Oct tracking.
A trigger input allows the filter to be pinged for percussive plucked type sounds. Finally, a built in VCA (normalled open) allows for additional independent amplitude control of the filtered signal.
- Compact filter and VCA in 4HP.
- Dual pole 12dB/Oct Low pass filter with resonance.
- Two frequency CV inputs, one with attenuversion and other with rough V/Oct tracking.
- Manual resonance control going into self oscillation.
- Trigger input for ’pinging’ filter.
- Normalled VCA input for optional amplitude control.
- Skiff friendly with reverse power protection.
- 2 Year Warranty.
- Made in England.
Width: 4HP
Max Depth: 32mm
Power: 25mA @+12V, 25mA @-12V
