ALM Busy Circuits

ALM Busy Circuits MCO

--

$169.00

In Stock

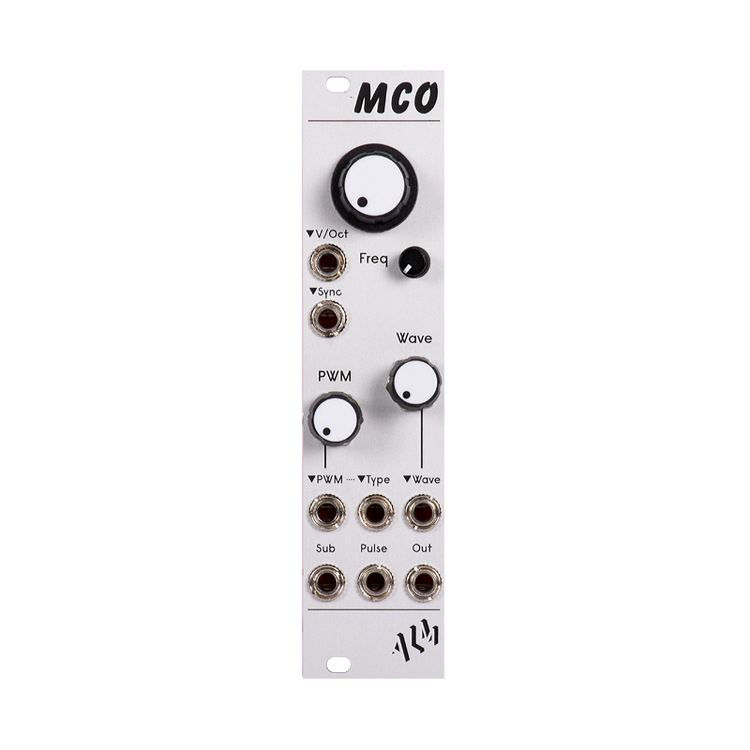

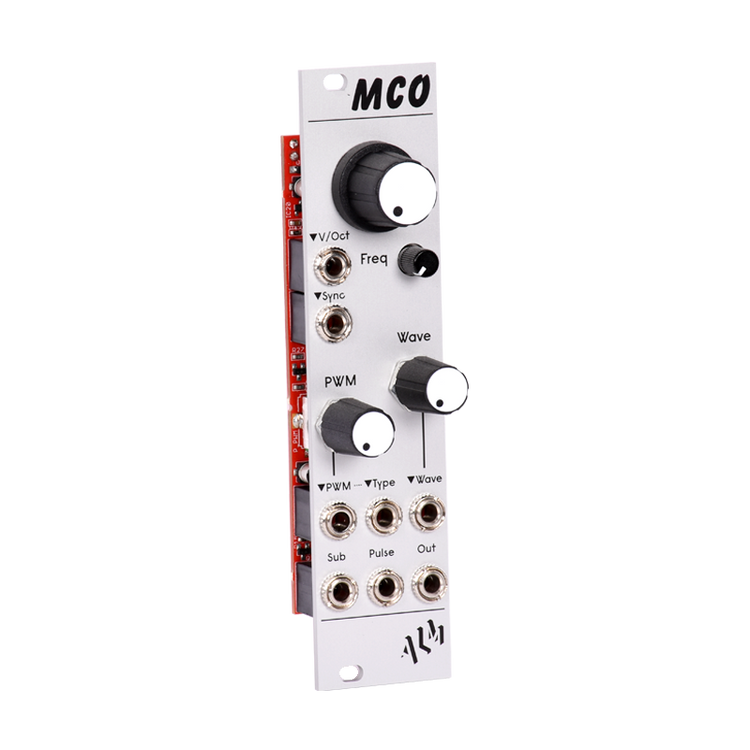

The ‘MCO’ is a compact digital oscillator. It features a main ‘morphing’ wavetable output, an additional copy of this output with overlaid variable pulse width segments (ala Alpha Juno style saw wave PWM) and a sub square wave output an octave down to the main output. The waveform and pulse segment width can be modulated both directly and with voltage control. The pulse segment distribution can also be voltage controlled via the ‘type’ input.

Expect an early 90s slightly crunchy digital type sound (ala Ensoniq, Kawaii KX synths) rather than something striving for perfect analog emulation.

The ‘MCO’ is a compact digital oscillator. It features a main ‘morphing’ wavetable output, an additional copy of this output with overlaid variable pulse width segments (ala Alpha Juno style...

« less

more »

Width: 6HP
Max Depth: 38mm
Power: 40mA@ +12V , 15mA@ -12V , 0mA@ +5V

Features

  • A lot of sound in 6HP
  • 3 Outputs; wavetable, PWM’d wavetable & sub
  • 10 morphing waveforms with noise, staple and complex forms
  • Voltage control of frequency, waveshape, pulse width and distribution
  • Hard sync input
  • Reverse polarity protection
  • Skiff friendly
  • Resolution: 16Bit/48Khz with AKM audio codec
  • Designed and Made in the UK
