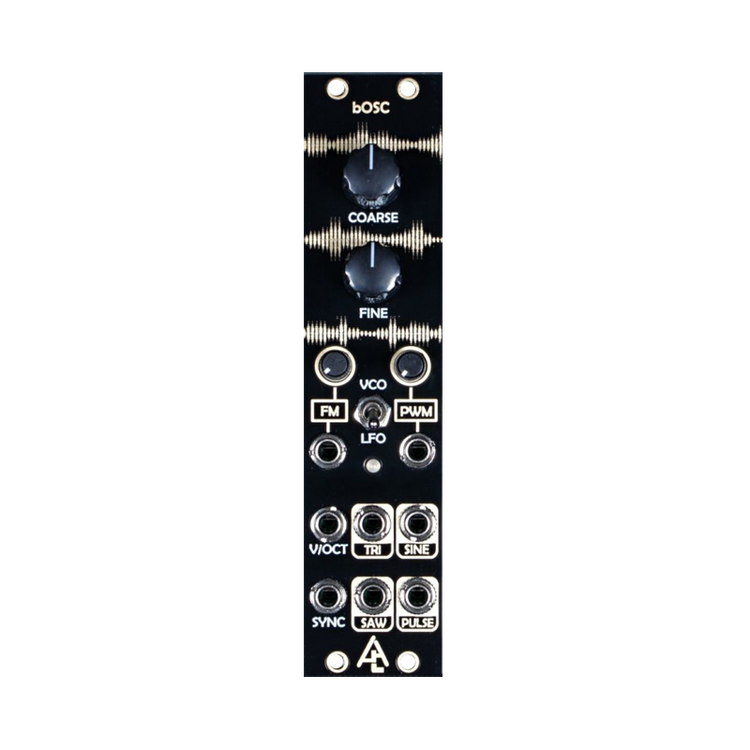

After Later Audio bOSC - CEM3340 Based Oscillator

After Later Audio

After Later Audio bOSC - CEM3340 Based Oscillator

Details / Features / Specs / Links

A triangle core oscillator that is based on the same CEM3340 chipset used in legendary synths (SH-101, Prophet 5, MemoryMoog). Offers a wide frequency range from 80s cycles up to 40kHz.

A triangle core oscillator that is based on the same CEM3340 chipset used in legendary synths (SH-101, Prophet 5, MemoryMoog). Offers a wide frequency range from 80s cycles up to...

« less

Four waveform outputs (TRI, SAW, PULSE, SINE)
V/OCT tracking over 5+ octaves
Linear FM with attenuator
Choice of hard sync or soft sync (set via jumper on back)
PWM attenuator and input (normalled to 5V)
LFO/VCO switch will change from audio rate to LFO rate (choice of two LFO timings, 8 sec or 80 sec, via jumper on the back)

Width: 6HP

Max Depth: 25mm

Power: 15mA @+12V , 15mA @-12V
