4ms

4ms Pod60 (Powered)

--

$175.00

Out of Stock

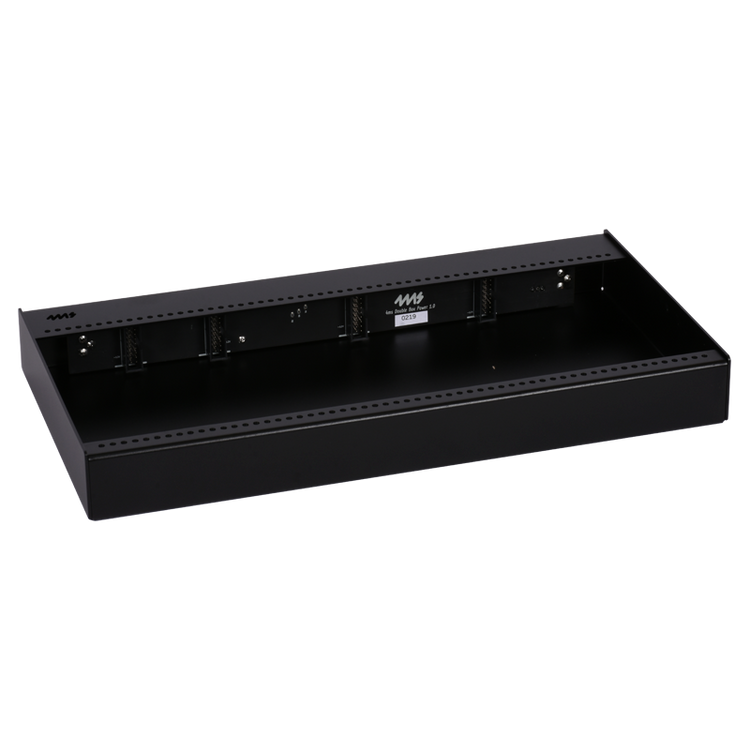

The Pod60 is 60HP with 1.34" (34mm) of available module depth. The built-in power supply requires a Pod power brick sold separately. If you already have a powered Pod and power brick (or a 4ms Row Power module) you can use a barrel cable to daisy-chain powered Pods.

The power supply can handle up to 700mA of +12V for the smaller Pods, and 1.4A for the Pod60, which is plenty of juice for even the most hungry modern digital modules.

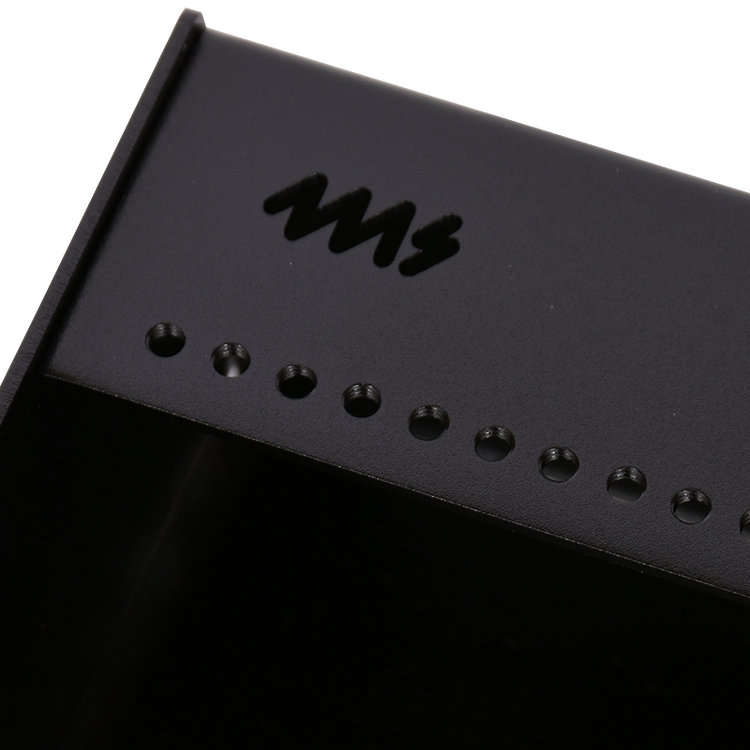

4ms Pods are low-cost, portable, compact enclosures made from 100% anodized aluminum that turn Eurorack modules into table-top instruments. They use standard M3 threaded holes and are available in a variety of widths: 20HP, 26HP, 32HP, and 60HP.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Please note that the Power Brick for Pods is sold separately.



The Pod60 is 60HP with 1.34" (34mm) of available module depth. The built-in power supply requires a Pod power brick sold separately. If you already have a powered Pod and...

« less

more »

Width: 60HP
Max Depth: 34mm
Power: 1400mA@ +12V , 560mA@ -12V , 400mA@ +5V

Features

  • Four 16-pin Eurorack power shrouded headers

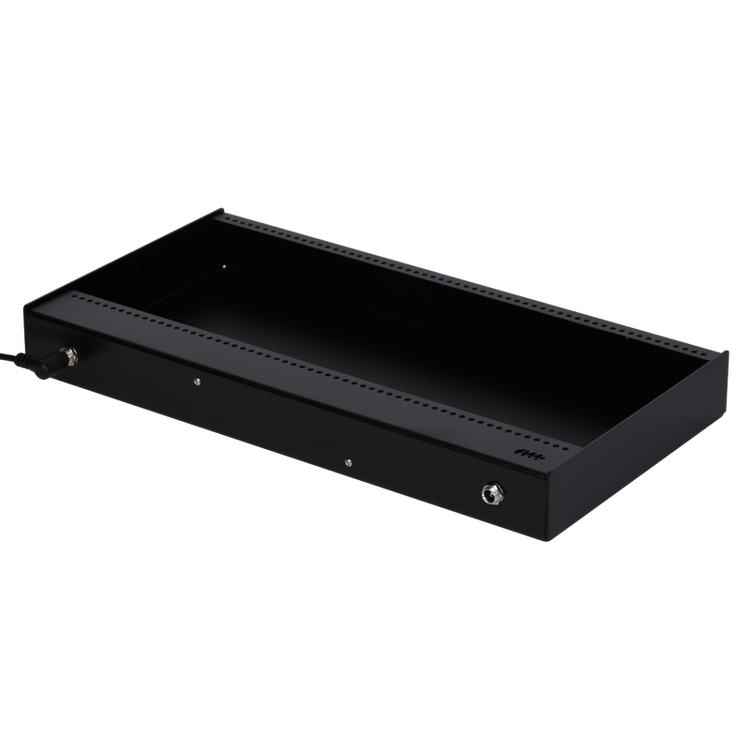

  • Power input: Two barrel jacks for daisy-chaining, 15V-20VDC, 2.1mm positive tip
  • Exterior width: 309.3mm (12.17")
  • Exterior height: 159.5mm (6.28")
  • Exterior depth: 36mm (1.42")
  • Interior module depth: 34.2mm (1.34")
  • Interior module width: 32HP
  • Weight: 0.41 kg = 14.5 oz
