4ms

4ms Listen Up

--

$65.00

In Stock

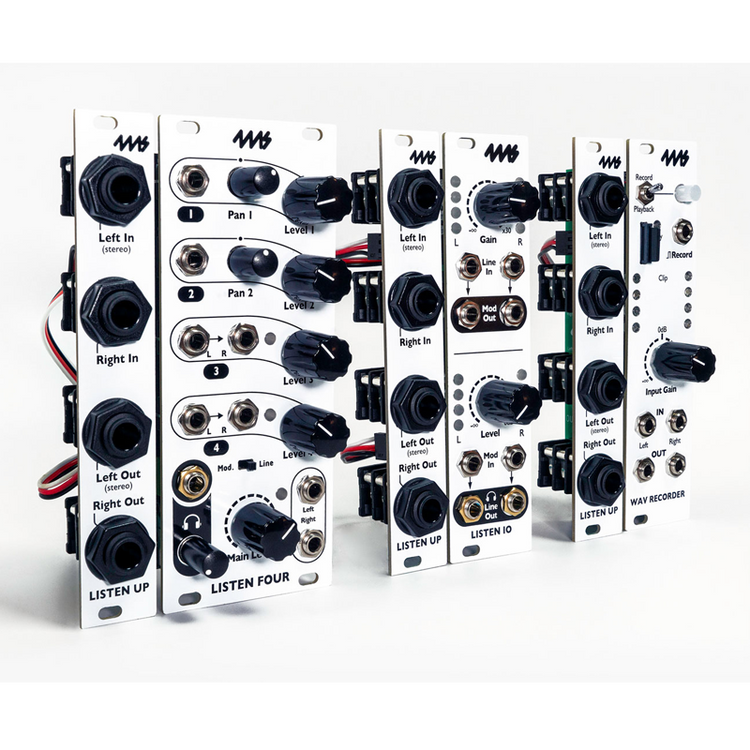

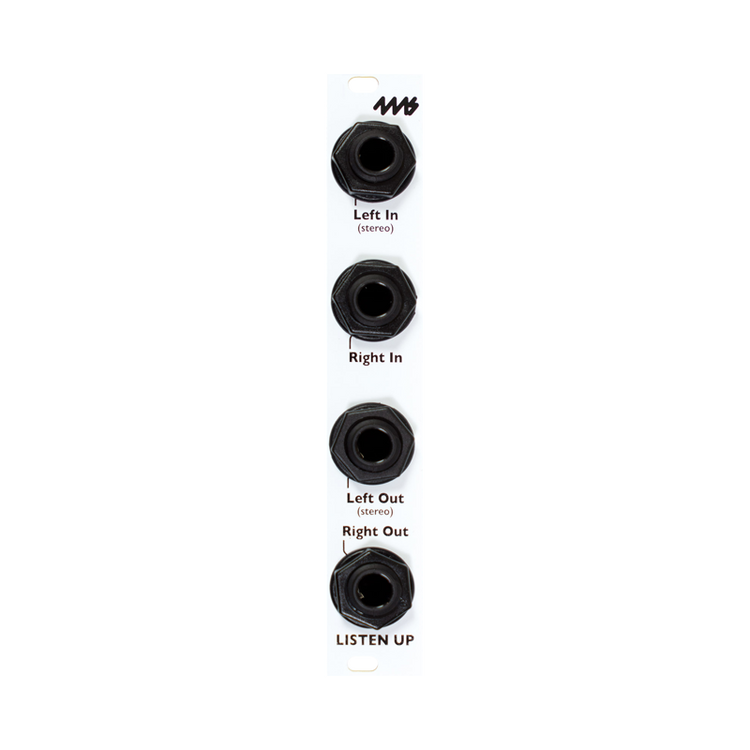

The Listen Up is a small passive expander for the Listen modules that provides stereo 1/4" (6.35mm) jack inputs and outputs. It connects to one or two Listen modules and/or WAV Recorder module with the included 3-pin cables. There are four 1/4" jacks arranged in left/right pairs. The left jack of each pair can be used as a TRS stereo jack if the right jack is unpatched.

The Listen Up is a small passive expander for the Listen modules that provides stereo 1/4" (6.35mm) jack inputs and outputs. It connects to one or two Listen modules and/or...

« less

more »

Width: 4HP
Max Depth: 23.8mm / .94"
Power: 0mA@ +12V , 0mA@ -12V , 0mA@ +5V

Features

  • Four 1/4” (6.35mm) jacks arranged in two stereo pairs.
  • Each stereo pair can be connected to the same module or to separate modules.
  • Each stereo pair (left/right) is bi-directional (input or output).
  • Left In and Left Out jacks are TRS stereo if corresponding Right jack is not unpatched.
  • Uses no power.

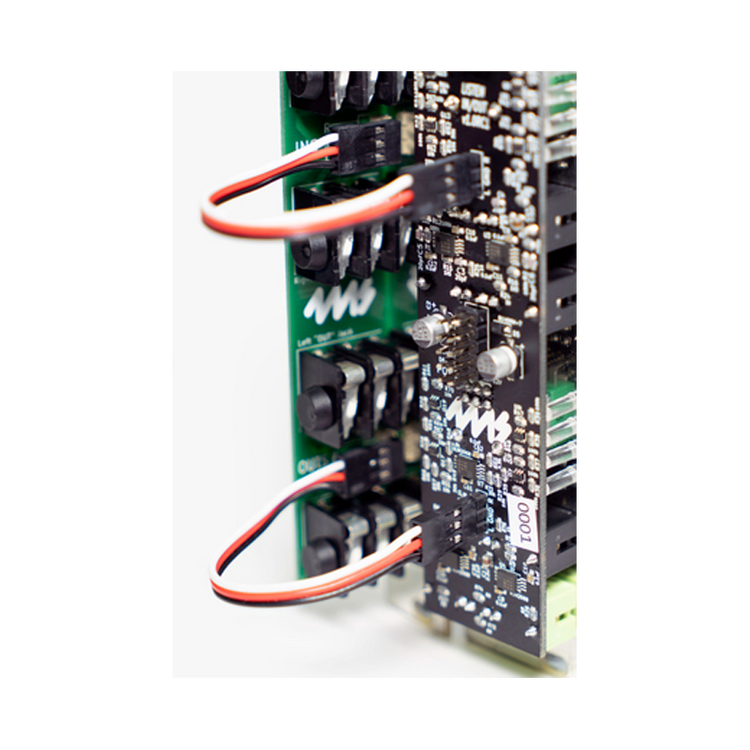

  • Connects directly to host module using 3-pin cables.
  • Two 3-pin cables included.
