4ms Buff Mult
Write a review
- Regular price
- $79.00
- Sale price
- $79.00
- Regular price
-
- Unit price
- per

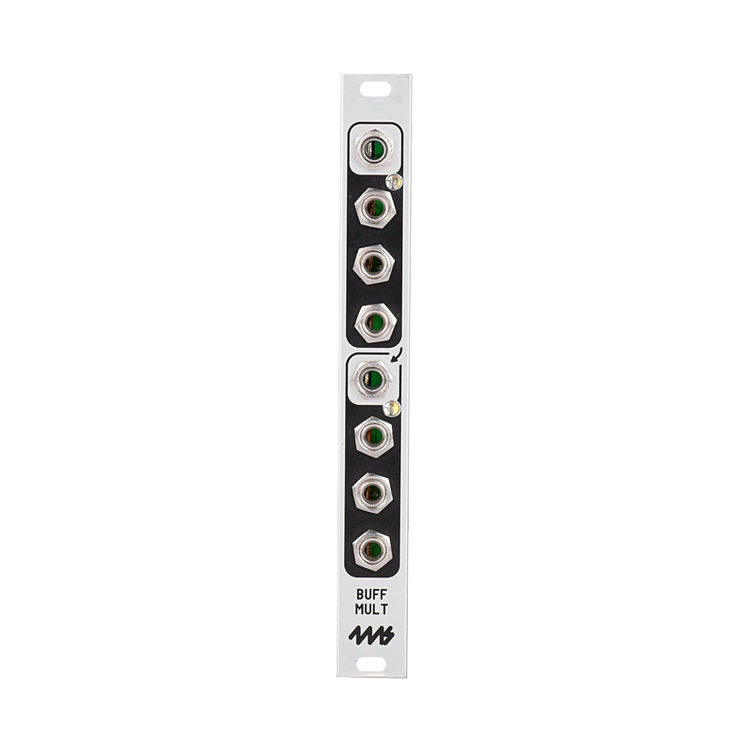

The Buff Mult is a buffered multiple with LED indicators to show positive and negative voltages. Using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6 mult for audio, video, or CV signals.
The Buff Mult is a buffered multiple with LED indicators to show positive and negative voltages. Using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6 mult for audio, video, or CV signals.
The Buff Mult is a buffered multiple with LED indicators to show positive and negative voltages. Using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6...
- Two independent buffered multiples, normalled together
- Each channel has one input and three outputs that are high-grade copies of the original
- Each channel has a bi-color LED to indicate positive (white) or negative (red) signal
- Video-rate opamps, for greatest bandwidth of any buffered mult. Fully compatible with LZX and video signals
- Bottom channel is normalized to top channel, for a 1-to-6 multiple
- Useful for detecting signals, troubleshooting patches, isolating modules, preventing "thump" or glitches during live patching, and protecting outputs
Width: 3HP
Max Depth: 18mm
Power: 13mA @+12V, 13mA @-12V, 0mA @+5V
