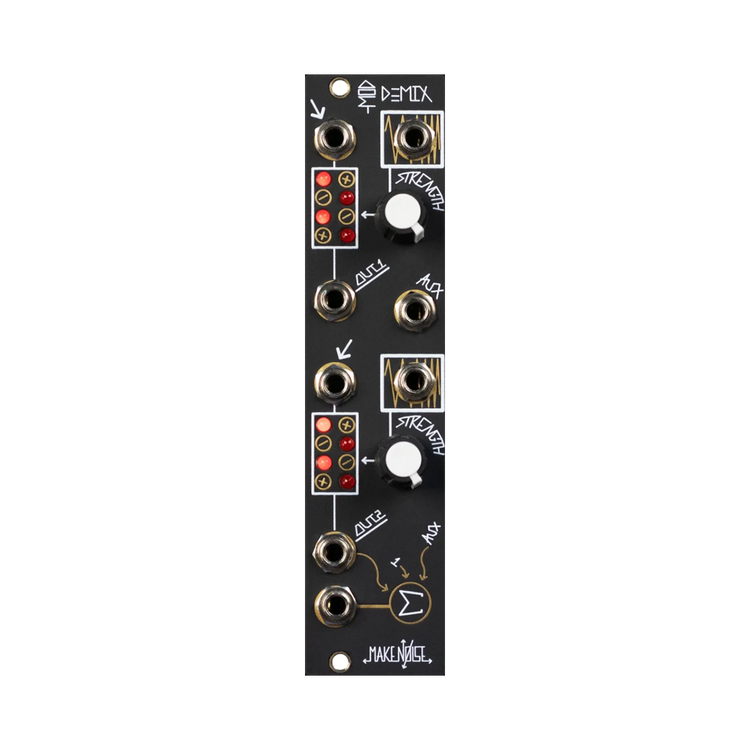

Make Noise modDemix (Pre-Order)
- Regular price
- $140.00
- Sale price
- $140.00
- Regular price
-
- Unit price
- per
Pre-Order
October
This item is a Pre-order and is not in stock. Pre-order availability and ETA is based on details provided by the manufacturer and are subject to change without notice. Payment is collected at the time when the order is placed.
The modDemix features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more.
The modDemix features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more.
The modDemix features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more.
- Unique balanced modulator circuit turns OFF around zero volts at the Carrier/ Control INput, making the circuit behave well as a VCA
- STRENGTH is a Combo Knob, with nothing patched to STRENGTH CV IN, it works as a standard panel control, setting Level. With signal patched to STRENGTH CV IN, it works as an attenuator, setting the strength of the modulation
- Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer
- AUXiliary IN allows for the stacking of multiple modDemix and/ or Optomix to create larger mixes
- Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod
- MAX BLINKENLIGHTS, 8 LEDs packed into a small 6hp module
- Pairs well with MATHS and Optomix
Width: 6HP
Max Depth: 24mm
Power: 30mA @+12V, 30mA @-12V, 0mA @+5V
