Expert Sleepers FH-2 factotum

(1)Write a review

$309.00

- +

Details / Features / Specs / Links

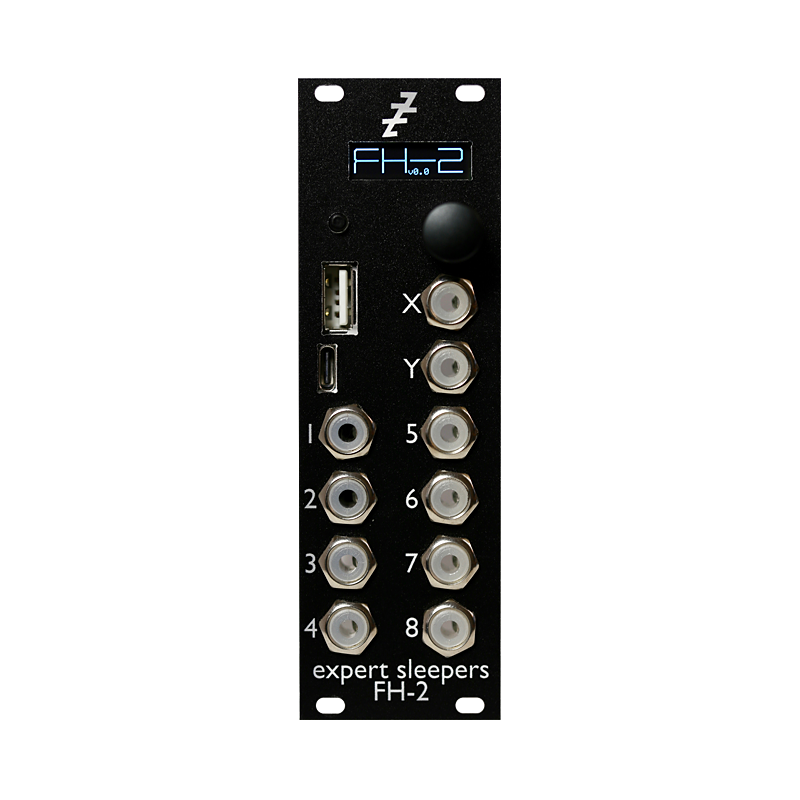

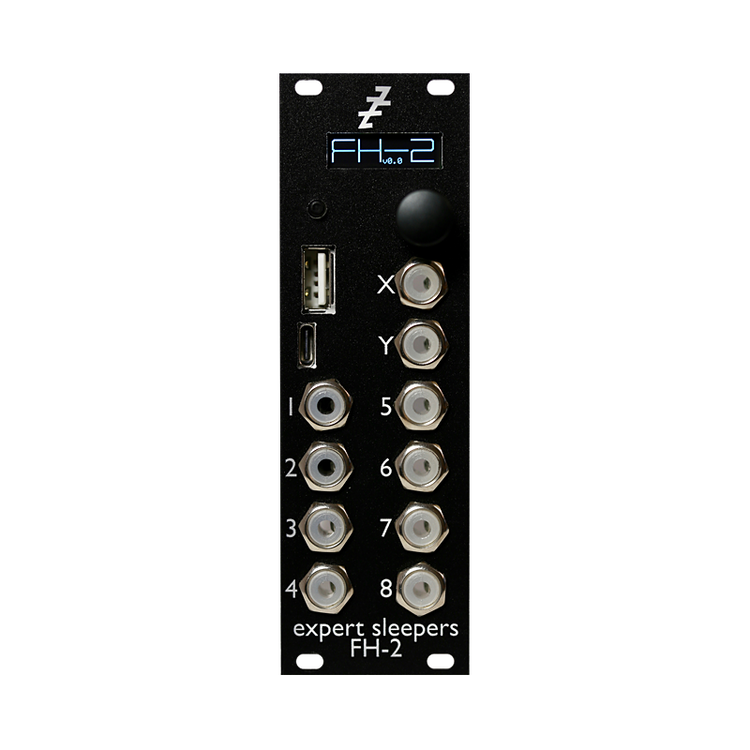

The FH-2 is an 8HP Eurorack module combining the following functions:

MIDI to CV conversion including polyphonic and MPE operation.
The FH-2 is simultaneously a USB MIDI host, a USB MIDI device, and also supports traditional 5-pin DIN MIDI.

Clock generation and synchronisation.
MIDI clock (in and out), analogue clock (in and out), or internal clock (BPM or tap tempo).

LFO generation, including tempo-synced LFOs.
Arpeggiator.
Step sequencer.

The FH-2 has 8 high precision CV outputs, expandable to 64 with the FHX-1 Output Expander.

The module can be completely configured via its own UI, but a convenient web-based configuration tool is also available here, which communicates with the module directly via MIDI SysEx.

The FH-2 is an 8HP Eurorack module combining the following functions: MIDI to CV conversion including polyphonic and MPE operation. The FH-2 is simultaneously a USB MIDI host, a USB...

« less

Outputs: 8
Digital-to-analogue conversion: 14 bit
Voltage range: software selectable between ±5V, 0-10V
Inputs: 2 CV inputs
USB host:
Type A connector
Class Compliant USB MIDI host.
Class Compliant USB HID host (for mice, gamepads etc.).
Supports USB hubs.
USB device:
Type C connector
Class Compliant USB MIDI device (plug'n'play with macOS, Windows, Linux and iOS).
Expansion:
Header for connecting FHX-1 Output Expanders.
Header for 5-pin DIN MIDI via a compatible breakout.
Controls: 1 rotary encoder (with push button), 1 push button
0.91" OLED display

Width: 8HP

Max Depth: 48mm

Power: 118mA @+12V , 48mA @-12V , 0mA @+5V
