Expert Sleepers ESX-8GT MK3
1 Review
- Regular price
- $75.00
- Sale price
- $75.00
- Regular price
-
- Unit price
- per

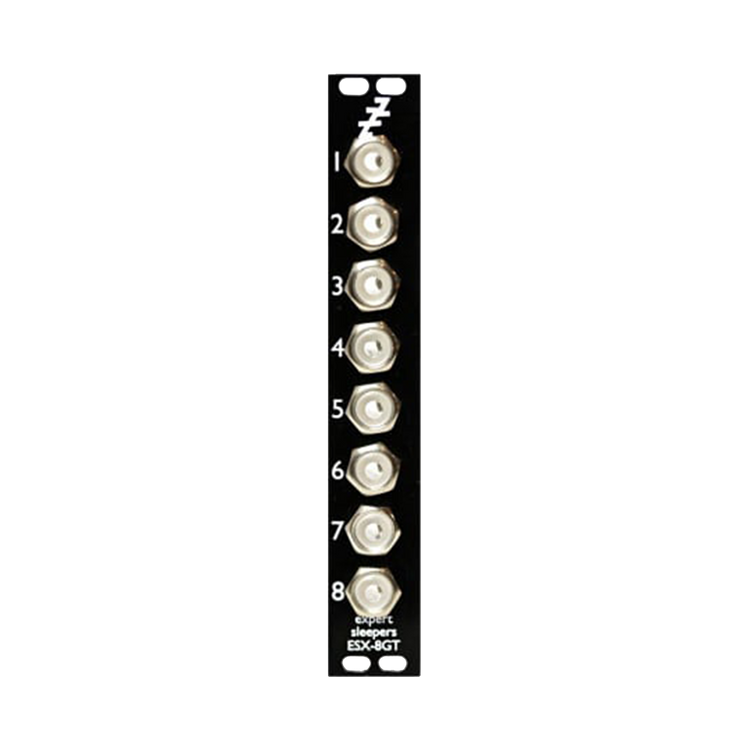

The ESX-8GT is an expansion module for the ES-4, ES-40, ES-5 or FHX-8GT, adding 8 on/off outputs for use as gates, triggers, clocks etc. from one expansion header.
The ES-4/5 Controller software (part of Expert Sleepers Silent Way) also allows the ESX-8GT outputs to be used for DIN sync or MIDI output* (note - not just MIDI clock output, but as an actual MIDI port, capable of sending any MIDI messages). Since these outputs are driven from an audio connection, they have sample-accurate timing, which no USB MIDI interface can claim. See the accessories page for the necessary cables. Note there is also the ESX-8MD module, which is dedicated to MIDI and DINsync duties.
*Note - the MIDI out feature is only officially supported at sample rates of 48kHz and above, though some users report success with specific hardware when running at 44.1kHz. The ESX-8MD mk2 module works for MIDI output at all sample rates.
February 2017 sees the launch of the "ESX-8GT mk3". Functionally equivalent to the ESX-8GT mk2, the mk3 adds illuminated jack sockets, and matches the look of the ES-8 and the other Feb'17 updates.
The ES-4/5 Controller software (part of Expert Sleepers Silent Way) also allows the ESX-8GT outputs to be used for DIN sync or MIDI output* (note - not just MIDI clock output, but as an actual MIDI port, capable of sending any MIDI messages). Since these outputs are driven from an audio connection, they have sample-accurate timing, which no USB MIDI interface can claim. See the accessories page for the necessary cables. Note there is also the ESX-8MD module, which is dedicated to MIDI and DINsync duties.
*Note - the MIDI out feature is only officially supported at sample rates of 48kHz and above, though some users report success with specific hardware when running at 44.1kHz. The ESX-8MD mk2 module works for MIDI output at all sample rates.
February 2017 sees the launch of the "ESX-8GT mk3". Functionally equivalent to the ESX-8GT mk2, the mk3 adds illuminated jack sockets, and matches the look of the ES-8 and the other Feb'17 updates.
The ESX-8GT is an expansion module for the ES-4, ES-40, ES-5 or FHX-8GT, adding 8 on/off outputs for use as gates, triggers, clocks etc. from one expansion header.
The ES-4/5 Controller software (part of Expert Sleepers Silent Way) also allows the ESX-8GT outputs to be used for DIN sync or MIDI output* (note - not just MIDI clock output, but as an actual MIDI port, capable of sending any MIDI messages). Since these outputs are driven from an audio connection, they have sample-accurate timing, which no USB MIDI interface can claim. See the accessories page for the necessary cables. Note there is also the ESX-8MD module, which is dedicated to MIDI and DINsync duties.
*Note - the MIDI out feature is only officially supported at sample rates of 48kHz and above, though some users report success with specific hardware when running at 44.1kHz. The ESX-8MD mk2 module works for MIDI output at all sample rates.
February 2017 sees the launch of the "ESX-8GT mk3". Functionally equivalent to the ESX-8GT mk2, the mk3 adds illuminated jack sockets, and matches the look of the ES-8 and the other Feb'17 updates.
The ES-4/5 Controller software (part of Expert Sleepers Silent Way) also allows the ESX-8GT outputs to be used for DIN sync or MIDI output* (note - not just MIDI clock output, but as an actual MIDI port, capable of sending any MIDI messages). Since these outputs are driven from an audio connection, they have sample-accurate timing, which no USB MIDI interface can claim. See the accessories page for the necessary cables. Note there is also the ESX-8MD module, which is dedicated to MIDI and DINsync duties.
*Note - the MIDI out feature is only officially supported at sample rates of 48kHz and above, though some users report success with specific hardware when running at 44.1kHz. The ESX-8MD mk2 module works for MIDI output at all sample rates.
February 2017 sees the launch of the "ESX-8GT mk3". Functionally equivalent to the ESX-8GT mk2, the mk3 adds illuminated jack sockets, and matches the look of the ES-8 and the other Feb'17 updates.
The ESX-8GT is an expansion module for the ES-4, ES-40, ES-5 or FHX-8GT, adding 8 on/off outputs for use as gates, triggers, clocks etc. from one expansion header.The ES-4/5 Controller...
- Analogue outputs: 8x 3.5mm jacks, DC-coupled
- Output voltages: 0V/5V or 0V/12V, selectable via jumper in groups independently for channels 1-4 and 5-8
- Indicators: LED per channel
Width: 4HP
Max Depth: 24mm
Power: 5mA @+12V, 0mA @-12V, 0mA @+5V
