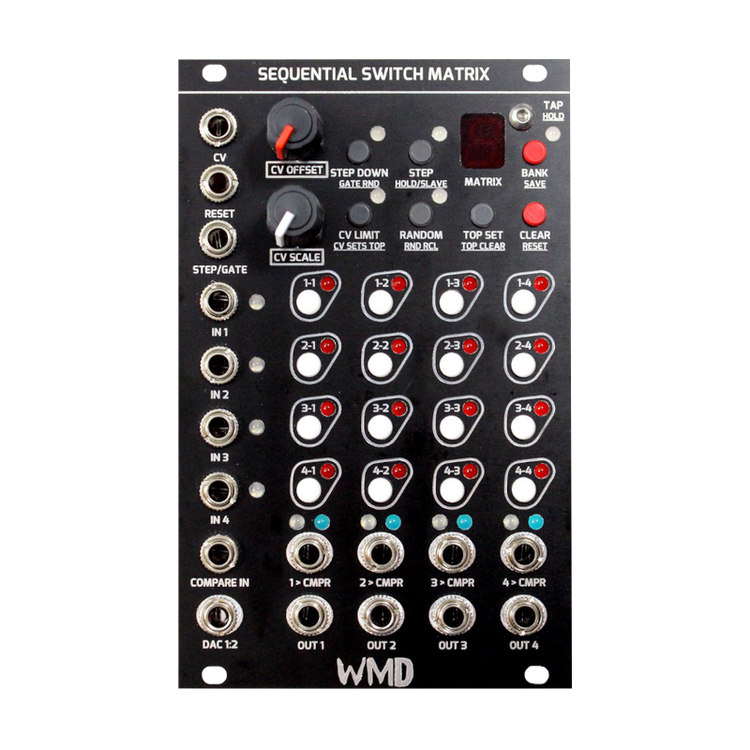

Introducing the WMD Sequential Switch Matrix: Our take on an essential module.
Four inputs can be routed with individual buttons to four outputs. Those routing settings are stored in an array of matrices that can be sequenced or controlled with CV. Preset routing, feedback loops, chop sequences, trigger blasts (with expander), four-bit-wavetable-synthesis, and dramatic controllable mayhem are all possible.
Four inputs can be routed with individual buttons to four outputs. Those routing settings are stored in an array of matrices that can be sequenced or controlled with CV. Preset routing, feedback loops, chop sequences, trigger blasts (with expander), four-bit-wavetable-synthesis, and dramatic controllable mayhem are all possible.
Introducing the WMD Sequential Switch Matrix: Our take on an essential module.
Four inputs can be routed with individual buttons to four outputs. Those routing settings are stored in an array of matrices that can be sequenced or controlled with CV. Preset routing, feedback loops, chop sequences, trigger blasts (with expander), four-bit-wavetable-synthesis, and dramatic controllable mayhem are all possible.
Four inputs can be routed with individual buttons to four outputs. Those routing settings are stored in an array of matrices that can be sequenced or controlled with CV. Preset routing, feedback loops, chop sequences, trigger blasts (with expander), four-bit-wavetable-synthesis, and dramatic controllable mayhem are all possible.
Introducing the WMD Sequential Switch Matrix: Our take on an essential module.Four inputs can be routed with individual buttons to four outputs. Those routing settings are stored in an array...
- Four Input Four Output Routing
- Inputs Mix to Outputs
- 16 Matrices per Bank
- 20Vpp Headroom
- Signal Strength and Polarity LEDs
- Comparator Input and Outputs
- Simultaneous CV and Gate Control
- Four Banks With Separate Settings
- Randomizing Functions
- CV Controlable Top Matrix
- Can Slave to MIDI Control Change
- 26kHz Maximum Switch Frequency
- 8 Bit DAC Voltage Output
- Skiffable PCB Design
Width: 16HP
Max Depth: 25mm
Power: 80mA @+12V, 32mA @-12V, 0mA @+5V
