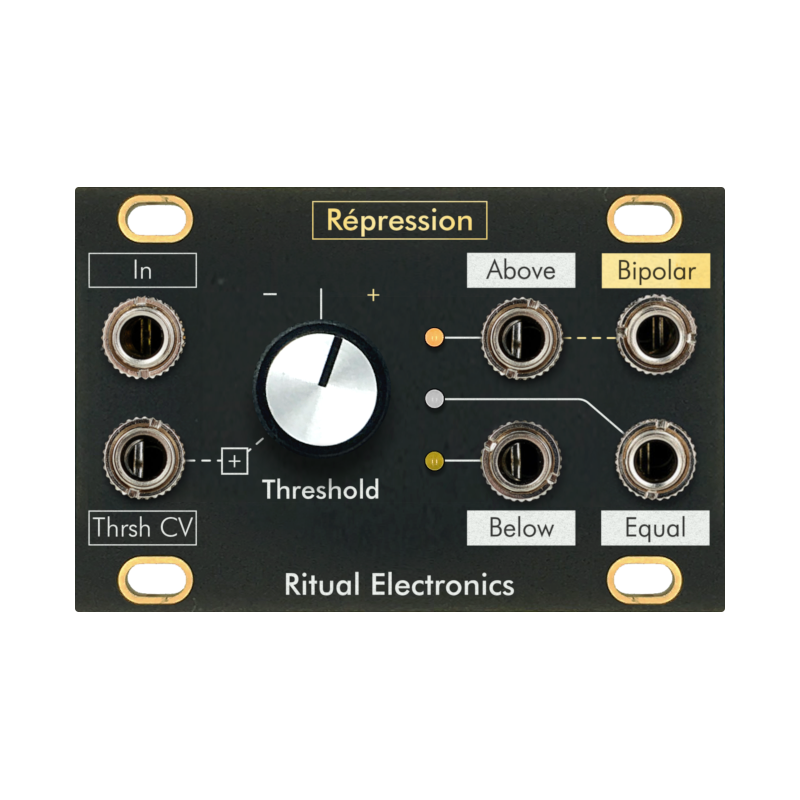

Répression is a feature packed comparator. Another refined prototype from last year’s Superbooth. More outputs and better controls.

It takes any kind of input, compares it to a threshold and outputs gates and triggers whether the input is Above, Below or Equal to the set level.

• Above & Below are +10V gates
• Equal is a +10V short trigger
• Bipolar is a -5/5V version of the above output for audio purposes

The Threshold knob has a range of -8.2/8.2V. It can be voltage controlled. The Thrsh CV input is added to the knob value.

Comparators in synthesizer may not be super fashionable at the moment but it is the building block of many great patches.
