ALM Busy Circuits Pamela's Workout Version 1

Write a review

$165.00

No Longer Available.
ALM Busy Circuits Pamela's Workout Version 1 is out of production and is no longer available. Looking for alternative suggestions? Use the form below.

Details / Features / Specs / Links

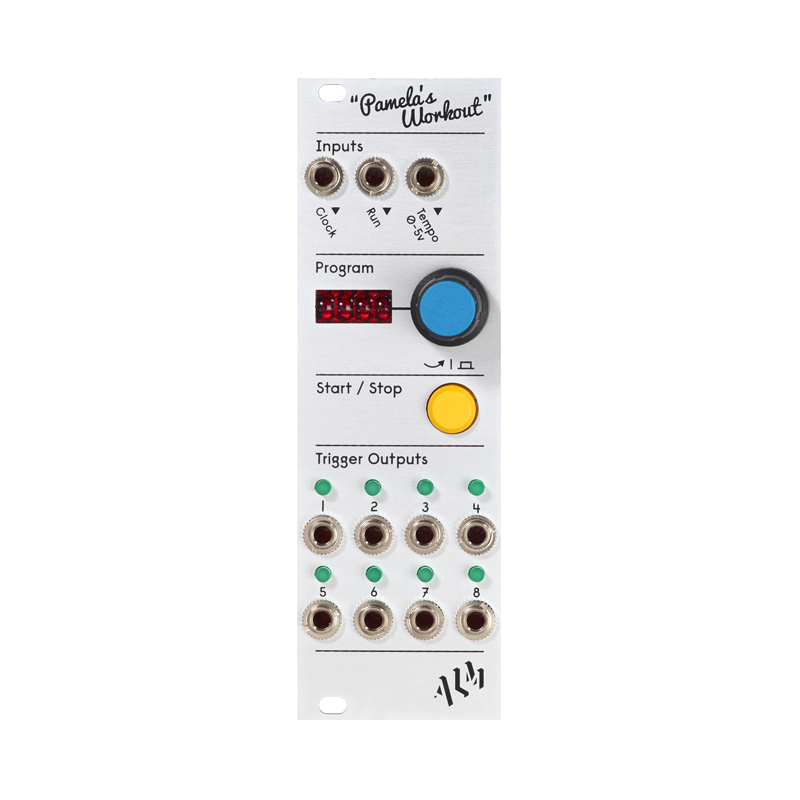

Pamela’s Workout is a compact programmable clock source for your Eurorack modular synthesizer system.

It provides 8 highly editable trigger outputs, all correlated to a direct and voltage controlled BPM based clock.

Pamela’s Workout is a compact programmable clock source for your Eurorack modular synthesizer system.It provides 8 highly editable trigger outputs, all correlated to a direct and voltage controlled BPM based...

« less

BPM based clock with rates 25-300BPM.
8 clocked independent adjustable trigger outputs each with 32 Clock divisors and multipliers /512 to *48 including Triplets, Evens, Odds etc.
Also per trigger Pulse width, random skips and delay and delay division (for complex shuffle)
Voltage and direct control of clock stop/start and reset.
Voltage control of clock rate.
Sync to an external clock input at 24 to 1 PQN.
Simple realtime user interface with ‘NOS’ vintage LED display.
Non-volatile – settings remembered between power cycles across 5 save banks.
Easy firmware upgrades with no special hardware needed just an audio out.
Provides DIN Sync input & output with simple adaptor.
Skiff friendly
Designed and built in England.

Width: 8HP

Max Depth: 22mm

Power: 80mA @+12V , 80mA @-12V , 0mA @+5V
