Dave Jones Design O'Tool+
- Regular price
- $325.00
- Sale price
- $325.00
- Regular price
-
- Unit price
- per
It includes user configurable settings and can remember settings at power up for three users. That means you can have different settings for home, studio, and performances, or any three different sets of settings.
It is temperature stable and extremely accurate. It can monitor two signals, with inputs looped through to other modules. The scope modes include an external trigger option.

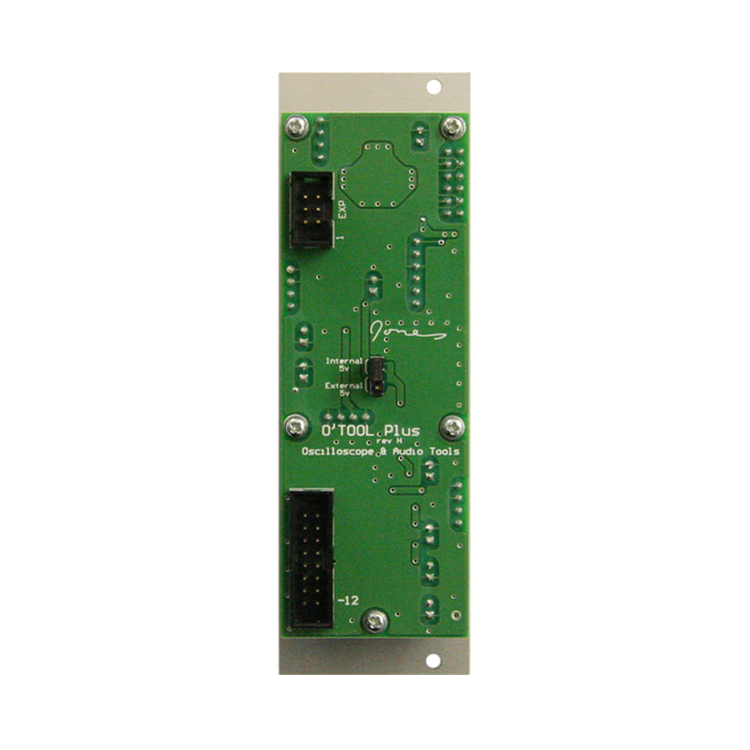

It is firmware upgradable. It has a jumper for internal or external 5 volt source. It has an expansion connector for possible future add-on modules.
It includes user configurable settings and can remember settings at power up for three users. That means you can have different settings for home, studio, and performances, or any three different sets of settings.
It is temperature stable and extremely accurate. It can monitor two signals, with inputs looped through to other modules. The scope modes include an external trigger option.
It is firmware upgradable. It has a jumper for internal or external 5 volt source. It has an expansion connector for possible future add-on modules.
- Single channel oscilloscope
- Dual channel oscilloscope

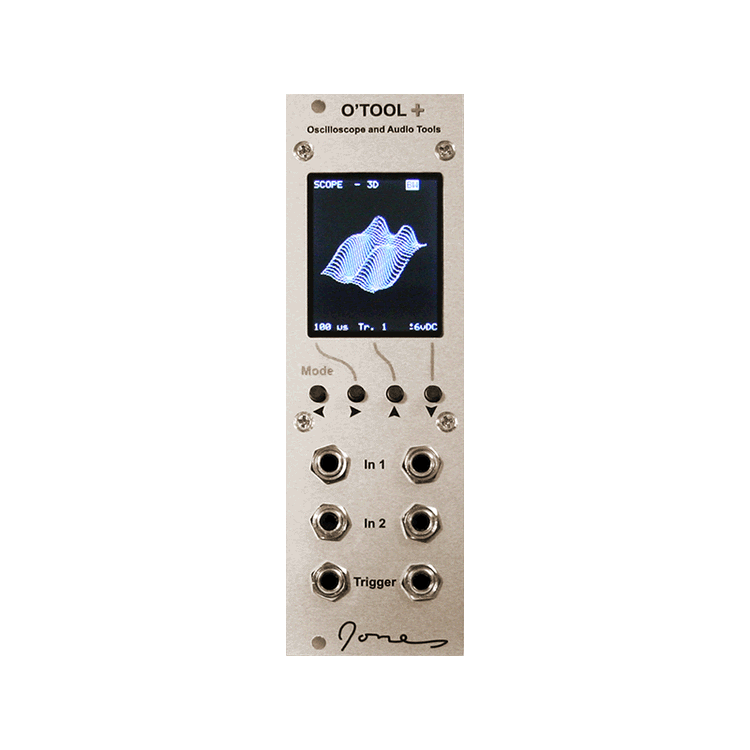

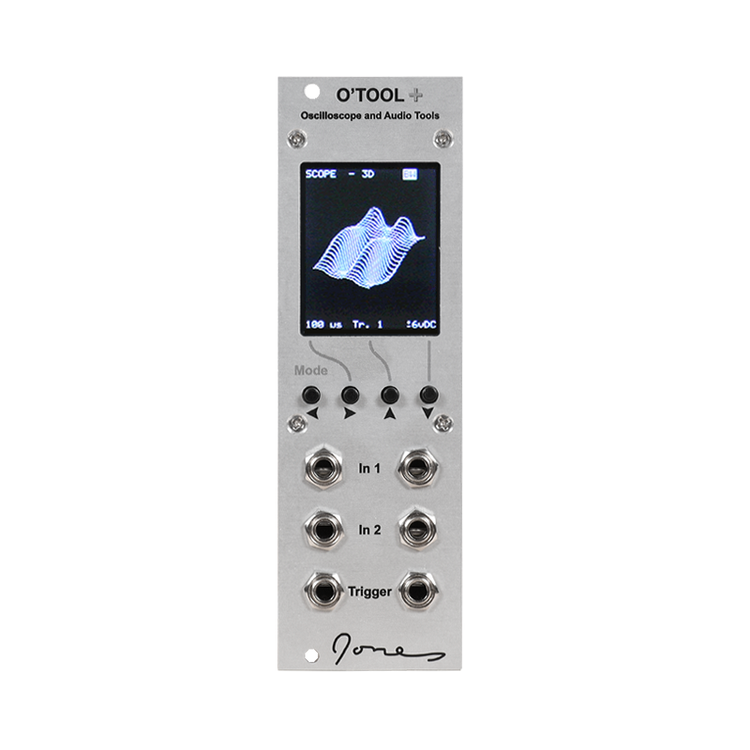

- 3D oscilloscope
- X/Y display
- Level meter
- VU meter
- Peak meter
- Voltmeter (with p-p and average DC)
- Linear spectrum analyzer
- Log spectrum analyzer
- Spectrogram
- BPM meter
- Metronome
Width: 8HP
Max Depth: 40mm
Power: 12mA @+12V, 22mA @-12V, 70mA @+5V
