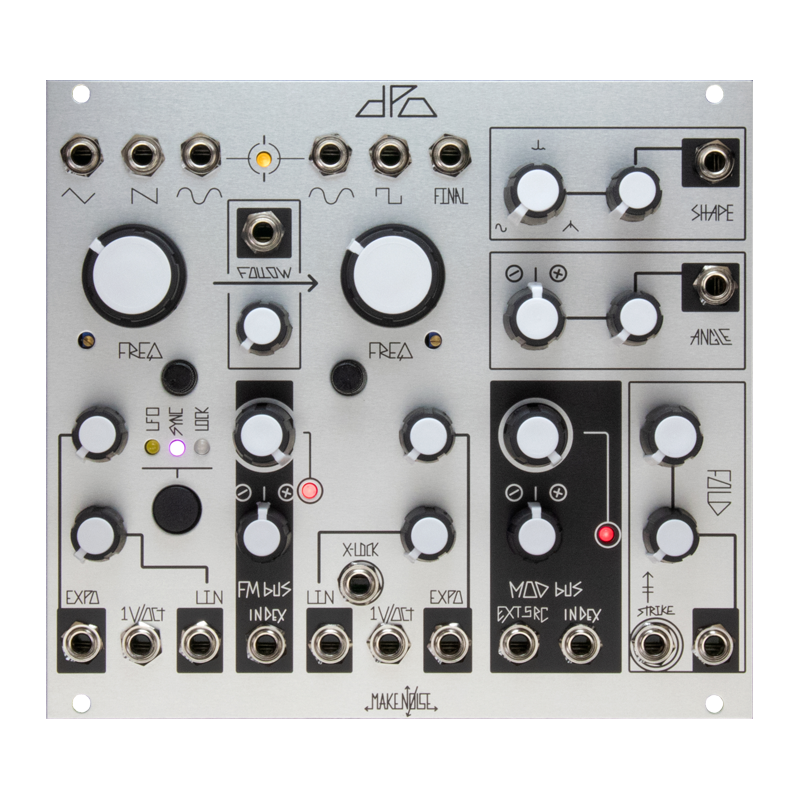

Make Noise DPO

Write a review

$599.00

- +

Details / Features / Specs / Links

A dual Voltage Controlled Oscillator designed for generating complex waveforms. Expanding on the classic arrangement of Primary and Modulator Oscillators, the DPO has both of the VCOs operable as complex signal sources. It is in essence a Dual Primary Oscillator.

« less

Vintage voiced, all analog
Triangle Core with Sine, Saw, Spike & Square wave shapes
Dedicated FM and Mod buses
Modulation source signals are internally routed with associated destination CV attenuators setting final depths
Mod Bus has added capability of using external source (patched at EXT. SouRCe input) in place of VCO 1 Sine
Bi-Directional Dynamic FM Bus allows for circular FM
VCO A features Hard Sync circuit which combined Dynamic FM yields complex sounds
VCO A operates as LFO, perfect for slow morphing of VCO B timbres
VCO B features complex timbral control through the use of a 3 parameter waveform shaping and Dynamic FM
Utilizes Vactrols
Pairs well with the Echophon

Width: 28HP

Max Depth: 30mm

Power: 70mA @+12V , 70mA @-12V , 0mA @+5V
