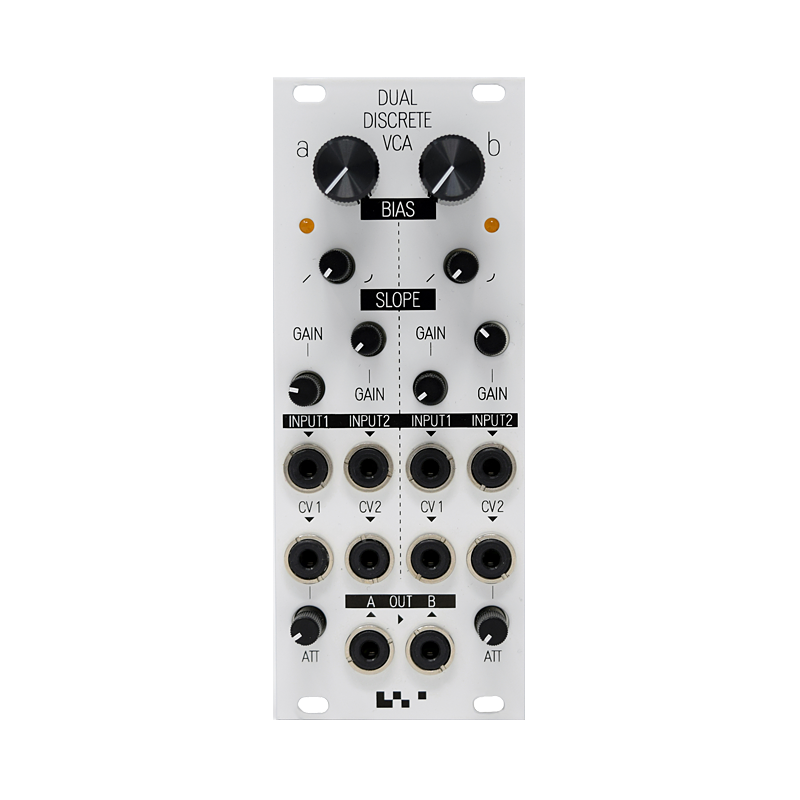

KOMA Elektronik Dual Discrete VCA

Write a review

$199.99

Details / Features / Specs / Links

The KOMA Dual Discrete VCA offers two independent high quality VCA channels, both built up out of discrete transistor cells with low CV and audio bleed, very low noise and distortion. The VCA’s feature set also enables you to experiment with the linear/exponential response curve, changing the dynamics of your sound. Play around with the gain settings for creative distortion effects in the classic KOMA style.

High quality sound by default, noise by choice!

The KOMA Dual Discrete VCA offers two independent high quality VCA channels, both built up out of discrete transistor cells with low CV and audio bleed, very low noise and...

« less

INPUT 1-2 (A+B) - Input to VCA. Designed primarily for audio signals. 100k Impedance. AC coupled.
CV INPUT 1-2 (A+B) - CV control for VCA Volume, 100k Impedance. DC coupled.
BIAS (A+B) - Manual control of VCA volume. The value of the BIAS control is mixed together with the incoming CV signal.
OUT (A+B) - Output from VCA, 1k impedance. AC coupled.
GAIN (A+B) - Pre-gain for input signal. Allows overdriving the input stage (saturation / distortion).
SLOPE (A+B) - VCA response shape from linear / to exponential. Fully CCW = linear. Fully CW = exponential.
ATT (A+B) - Attenuator for CV 1 input on channel A and CV 2 input on channel B. Attenuates the voltage of the incoming CV signal. Unipolar.

Width: 12HP

Max Depth: 37mm

Power: 40mA @+12V , 40mA @-12V , 0mA @+5V
