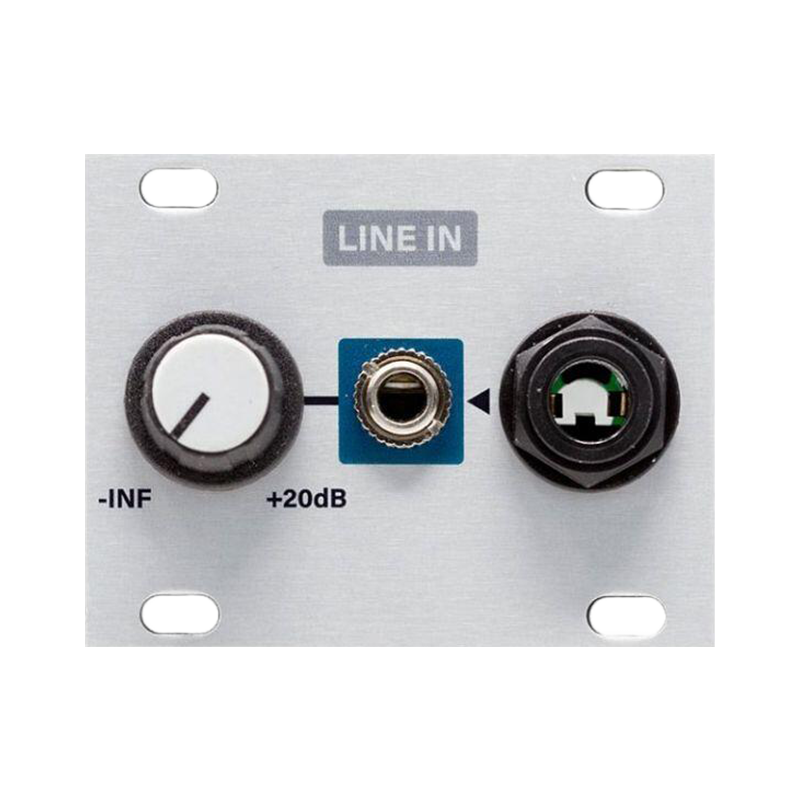

Intellijel Line In 1U
- Regular price
- $39.00
- Sale price
- $39.00
- Regular price
-
- Unit price
- per
This module allows you to connect and route external audio into your Eurorack modular system. It is a compact and simple way to patch in external line-level instruments (like synths and drum machines), outputs from your DAW, rack-mount or desktop FX units, or any other line-level source. Simply connect your source to the Line In 1U 1/4″ jack, where it’s transformed into eurorack levels, and ready to patch into any module through the 1/8″ output.
This module allows you to connect and route external audio into your Eurorack modular system. It is a compact and simple way to patch in external line-level instruments (like synths and drum machines), outputs from your DAW, rack-mount or desktop FX units, or any other line-level source. Simply connect your source to the Line In 1U 1/4″ jack, where it’s transformed into eurorack levels, and ready to patch into any module through the 1/8″ output.
- Input path boosts a -10dBV or +4dBU balanced line level signal to Eurorack modular signal with adjustable gain
- 1 x Balanced TRS 1/4″ input path to Eurorack modular signal level
- Uses a high quality THATCorp balanced line receiver IC
Width: 10HP
Max Depth: 27mm
Power: 9mA @+12V, 9mA @-12V
