Instruo Ceis

Write a review

$199.00

- +

Details / Features / Specs / Links

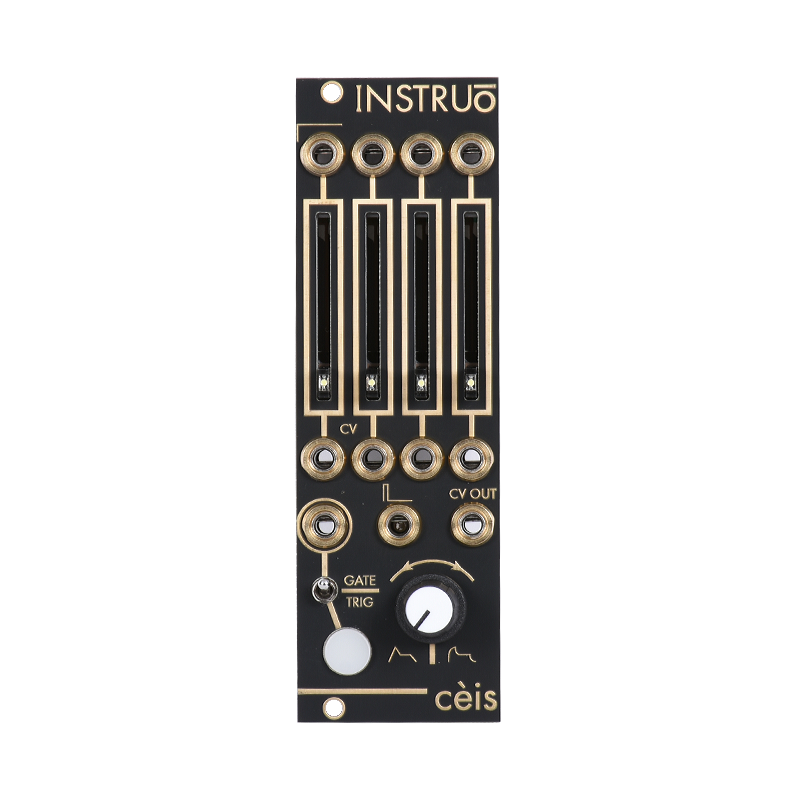

Cèis is a fully analogue and voltage controllable ADSR envelope generator. It offers voltage control over each segment of the envelope with individual gate/trigger outputs for each segment, giving you maximum versatility from this classic synthesizer module.

« less

Four faders control the A. D. S. and R. segments
Individual gate output per segment
Combined trigger output which fires at the beginning of each envelope segment
Envelope output that can be shaped from linear forms to exponential
Manual trigger button for control in addition to a gate/trigger input jack
Toggle switch that sets the module's behaviour to work with gates or triggers
TRIG position that forces the envelope's attack segment to complete regardless of pulse duration
Attack and Release controls that can be used as a single shot controlled AR/AD envelope
All analog design

Width: 8HP

Max Depth: 27mm

Power: 60mA @+12V , 30mA @-12V
