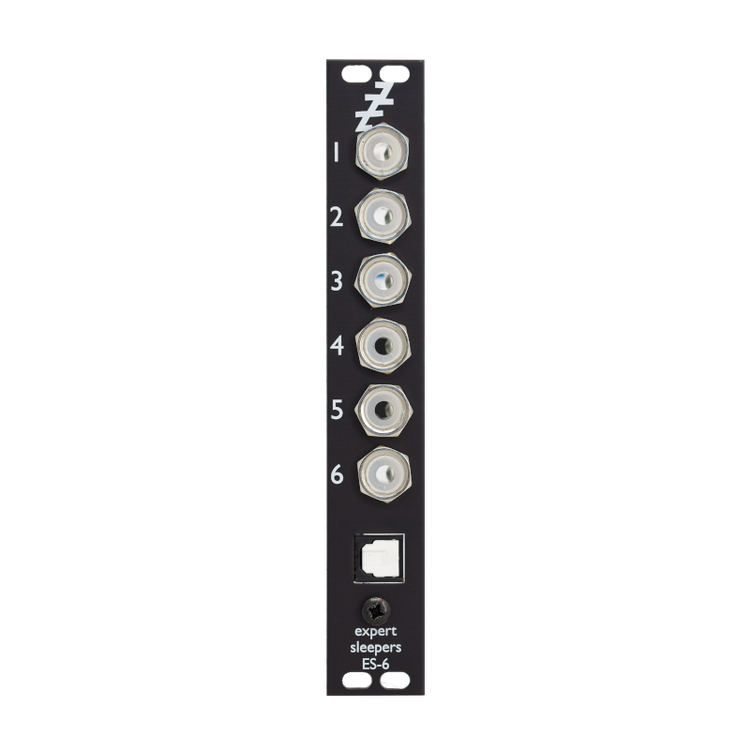

Expert Sleepers ES-6 MK3 - CV/Lightpipe Interface
Write a review
- Regular price
- $160.00
- Sale price
- $160.00
- Regular price
-
- Unit price
- per
The ES-6 is the counterpart to the ES-3 Lightpipe/CV Interface and ES-8, offering up to 8 channels of CV input with output via an optical lightpipe connection. As with the ES-3 and ES-8, the ES-6 also works well for audio signals, with conversion quality on a par with a regular audio interface.
The ES-6 itself has 6 input sockets; the remaining 2 channels are provided by an expansion module e.g. the ES-7.
Please note that a connected ES-3 or ES-8 is required for operation. The ES-6 gets its clock signals from the ES-3 or ES-8, which derives them from its lightpipe input.
The ES-6 mk3 is functionally equivalent to the ES-6 mk2, but the design has been slightly updated to improve the module's resistance to electrostatic discharge damage and to ensure that it can be produced with currently available components.
The ES-6 itself has 6 input sockets; the remaining 2 channels are provided by an expansion module e.g. the ES-7.
Please note that a connected ES-3 or ES-8 is required for operation. The ES-6 gets its clock signals from the ES-3 or ES-8, which derives them from its lightpipe input.
The ES-6 mk3 is functionally equivalent to the ES-6 mk2, but the design has been slightly updated to improve the module's resistance to electrostatic discharge damage and to ensure that it can be produced with currently available components.
The ES-6 is the counterpart to the ES-3 Lightpipe/CV Interface and ES-8, offering up to 8 channels of CV input with output via an optical lightpipe connection. As with the ES-3 and ES-8, the ES-6 also works well for audio signals, with conversion quality on a par with a regular audio interface.
The ES-6 itself has 6 input sockets; the remaining 2 channels are provided by an expansion module e.g. the ES-7.
Please note that a connected ES-3 or ES-8 is required for operation. The ES-6 gets its clock signals from the ES-3 or ES-8, which derives them from its lightpipe input.
The ES-6 mk3 is functionally equivalent to the ES-6 mk2, but the design has been slightly updated to improve the module's resistance to electrostatic discharge damage and to ensure that it can be produced with currently available components.
The ES-6 itself has 6 input sockets; the remaining 2 channels are provided by an expansion module e.g. the ES-7.
Please note that a connected ES-3 or ES-8 is required for operation. The ES-6 gets its clock signals from the ES-3 or ES-8, which derives them from its lightpipe input.
The ES-6 mk3 is functionally equivalent to the ES-6 mk2, but the design has been slightly updated to improve the module's resistance to electrostatic discharge damage and to ensure that it can be produced with currently available components.
The ES-6 is the counterpart to the ES-3 Lightpipe/CV Interface and ES-8, offering up to 8 channels of CV input with output via an optical lightpipe connection. As with the...
- Sync input: connection from ES-3 module
- Analogue inputs: 6x 3.5mm jacks, DC-coupled
- Input voltage range: ±10V
- Input impedance: effectively infinite (FET buffer)
- Digital output: optical, ADAT Lightpipe standard
- A/D conversion: 24 bit, 103dB SNR typical
- Expansion
- Header for connecting expansion modules e.g. the ES-7
- Header for connecting expansion modules e.g. the ES-7
Width: 6HP
Max Depth: 52mm
Power: 67mA @+12V, 24mA @-12V, 0mA @+5V
