ALM Busy Circuits S.B.G-PRO (Pre-Order)
- Regular price
- $310.00
- Sale price
- $310.00
- Regular price
-
- Unit price
- per
This item is a Pre-order and is not in stock. Pre-order availability and ETA is based on details provided by the manufacturer and are subject to change without notice. Payment is collected at the time when the order is placed.

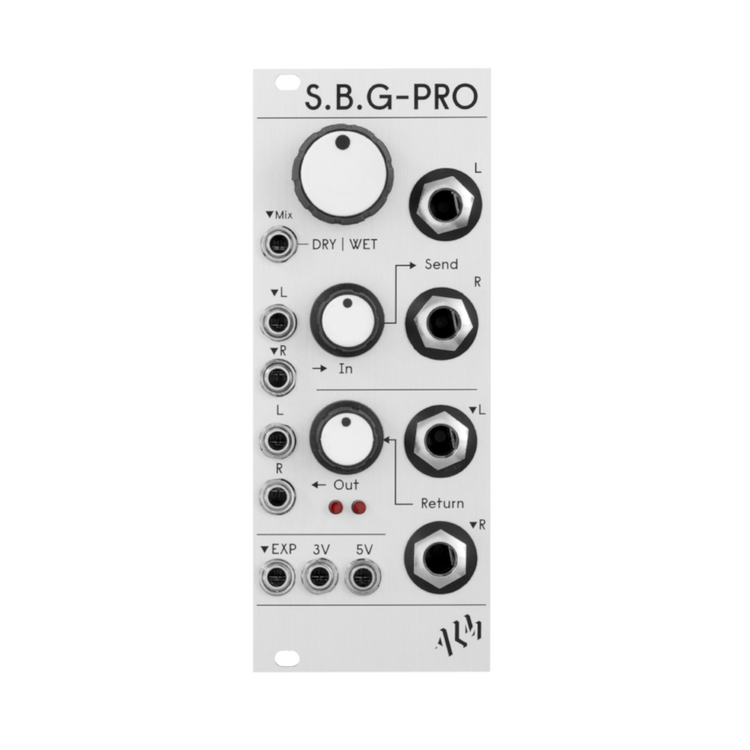

The ’S.B.G-PRO’ is a versatile utility module designed to flexibly integrate Eurorack systems with external audio equipment.
It supports mono, stereo, balanced, and unbalanced input and output via 6.35mm jacks with level matching controls with clipping indication. The module features both direct and voltage- controlled equal power crossfading between wet and dry sources.
Additionally, an expression input, along with the included ‘floating ring’ cable and conditioned output, ensures safe, voltage-limited CV control of external devices from your modular system.
The module extends its sibling, the original S.B.G, by adding full size stereo balanced jack connections and voltage control focusing more on connectivity with not just pedals but also pro audio equipment including rack effects, 500 Series modules and mixing consoles.
Ideal For:
- Interfacing your Eurorack module with non Eurorack equipment such as rack effects, Series 500 modules, Consoles etc.
- Using your modular as an effects processor with a mixing console or other non Eurorack equipment.
- Combining Series 500 modules with your Eurorack system.
- A high quality balanced stereo audio output for your modular.
The ’S.B.G-PRO’ is a versatile utility module designed to flexibly integrate Eurorack systems with external audio equipment.
It supports mono, stereo, balanced, and unbalanced input and output via 6.35mm jacks with level matching controls with clipping indication. The module features both direct and voltage- controlled equal power crossfading between wet and dry sources.
Additionally, an expression input, along with the included ‘floating ring’ cable and conditioned output, ensures safe, voltage-limited CV control of external devices from your modular system.
The module extends its sibling, the original S.B.G, by adding full size stereo balanced jack connections and voltage control focusing more on connectivity with not just pedals but also pro audio equipment including rack effects, 500 Series modules and mixing consoles.
Ideal For:
- Interfacing your Eurorack module with non Eurorack equipment such as rack effects, Series 500 modules, Consoles etc.
- Using your modular as an effects processor with a mixing console or other non Eurorack equipment.
- Combining Series 500 modules with your Eurorack system.
- A high quality balanced stereo audio output for your modular.
- Balanced, unbalanced, mono and stereo audio signals supported with 6.35mm Neutrik jacks.
- Attenuation of out going modular audio signal for sending to external inputs.
- Amplification of returned audio signal to modular level (up to 32dB of gain).
- Clipping indication for over-amplification of external returned signal.
- Equal power cross fade between original ‘dry’ source signal and returned ‘wet’ signal with both direct and voltage control.
- High quality balanced converters with very low noise and bleed.
- Regulation/conditioning of CV modulation signals intended for pedal expression or external CV inputs.
- Includes ‘floating ring’ cable for safe expression input connectivity.
- Skiff friendly.
- Designed and Made in the UK.
Width: 10HP
Max Depth: 32mm
Power: 60mA @+12V, 55mA @-12V, 0mA @+5V
