ALM Busy Circuits Pip LFO
- Regular price
- $145.00
- Sale price
- $145.00
- Regular price
-
- Unit price
- per

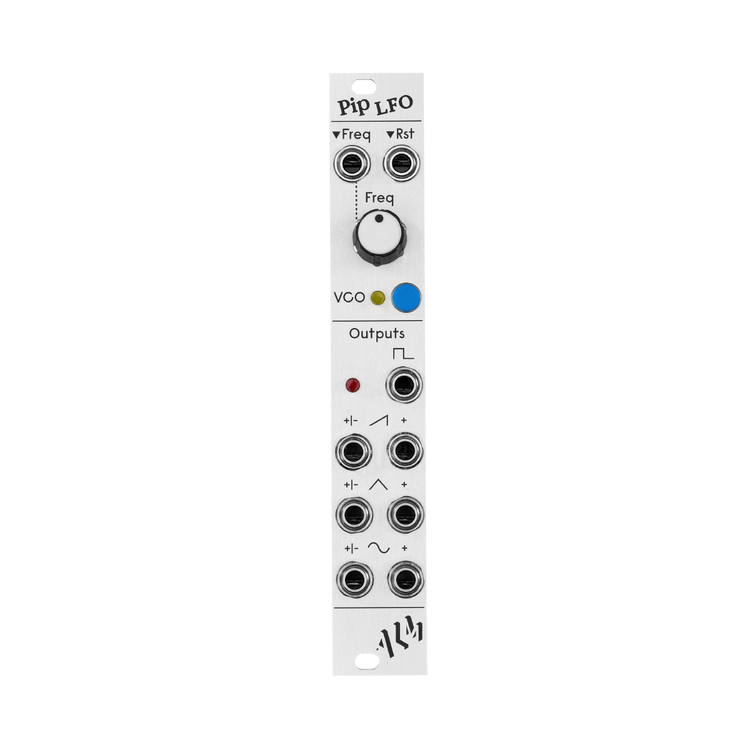

The ’Pip LFO’ is a compact 4HP all analogue low frequency oscillator with a wide frequency range, voltage control, numerous outputs, reset input and a VCO mode. LFO speed is set via a manual control and voltage control input. There is a unipolar square wave output along with both bipolar and uni-polar triangle, saw and sine waveform outputs.
When VCO mode is activated, the frequency jumps to audio range and will track V/Oct for approximately 5 octaves. A reset input allows the LFO waveform cycle to be reset and produces hard sync functionality in VCO mode.
The ’Pip LFO’ is a compact 4HP all analogue low frequency oscillator with a wide frequency range, voltage control, numerous outputs, reset input and a VCO mode. LFO speed is set via a manual control and voltage control input. There is a unipolar square wave output along with both bipolar and uni-polar triangle, saw and sine waveform outputs.
When VCO mode is activated, the frequency jumps to audio range and will track V/Oct for approximately 5 octaves. A reset input allows the LFO waveform cycle to be reset and produces hard sync functionality in VCO mode.
- Manual and CV control over LFO frequency.
- Frequency range from approx 0.01Hz to 20Khz+
- Square, Triangle, Saw and Sine simultaneous waveform outputs.
- Uni and Bipolar outputs.
- Audible frequency ’VCO’ mode with V/Octave tracking.
- LED frequency indication.
- External reset/sync input.
- Skiff friendly with reverse power protection.
- 2 Year Warranty.
- Made in England.
Width: 4HP
Max Depth: 32mm
Power: 40mA @+12V, 20mA @-12V
