4ms Listen Up

Write a review

$65.00

Details / Features / Specs / Links

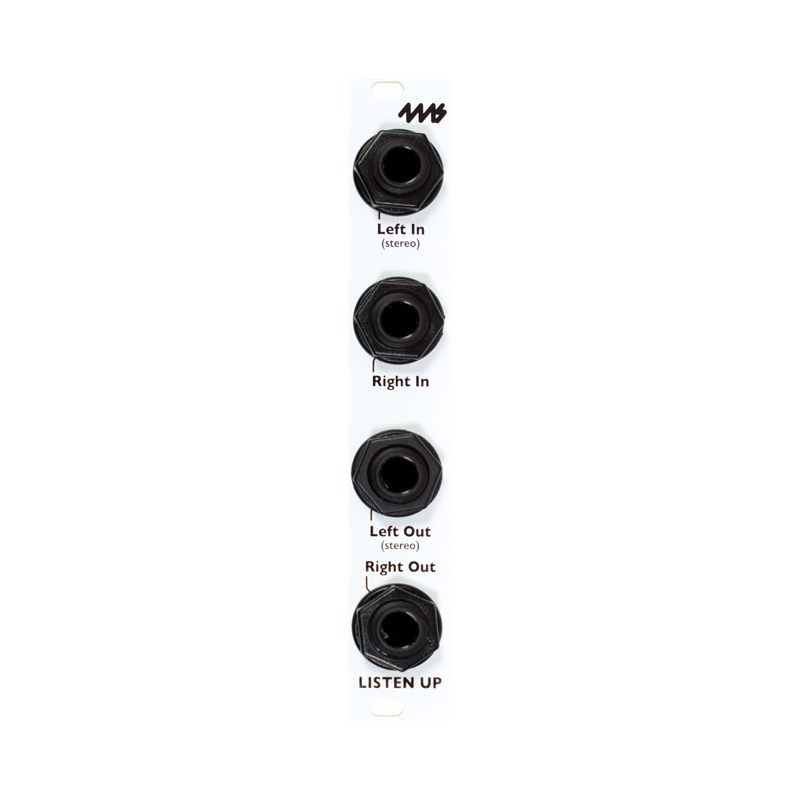

The Listen Up is a small passive expander for the Listen modules that provides stereo 1/4" (6.35mm) jack inputs and outputs. It connects to one or two Listen modules and/or WAV Recorder module with the included 3-pin cables. There are four 1/4" jacks arranged in left/right pairs. The left jack of each pair can be used as a TRS stereo jack if the right jack is unpatched.

The Listen Up is a small passive expander for the Listen modules that provides stereo 1/4" (6.35mm) jack inputs and outputs. It connects to one or two Listen modules and/or...

« less

Four 1/4” (6.35mm) jacks arranged in two stereo pairs.
Each stereo pair can be connected to the same module or to separate modules.
Each stereo pair (left/right) is bi-directional (input or output).
Left In and Left Out jacks are TRS stereo if corresponding Right jack is not unpatched.
Uses no power.
Connects directly to host module using 3-pin cables.
Two 3-pin cables included.

Width: 4HP

Max Depth: 23.8mm / .94"

Power: 0mA @+12V , 0mA @-12V , 0mA @+5V
