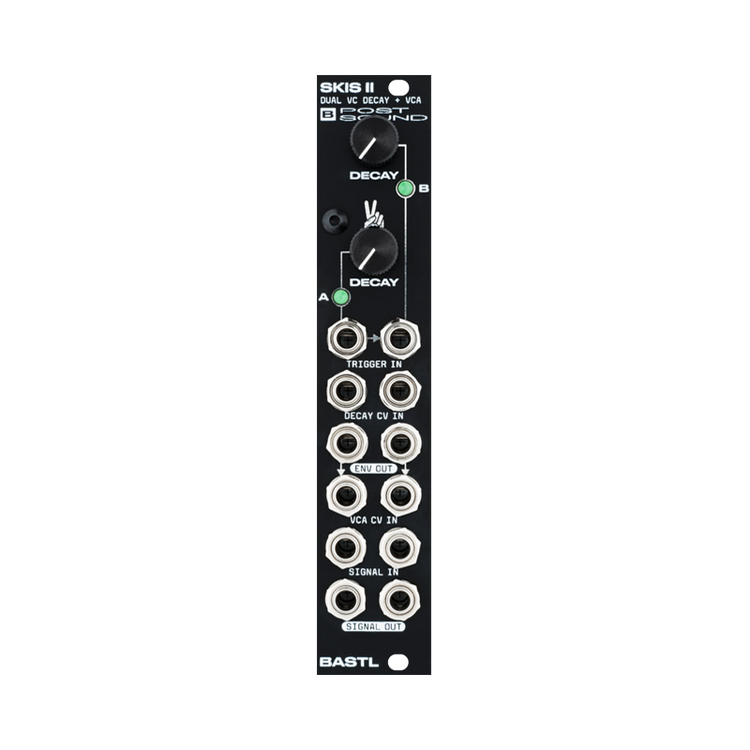

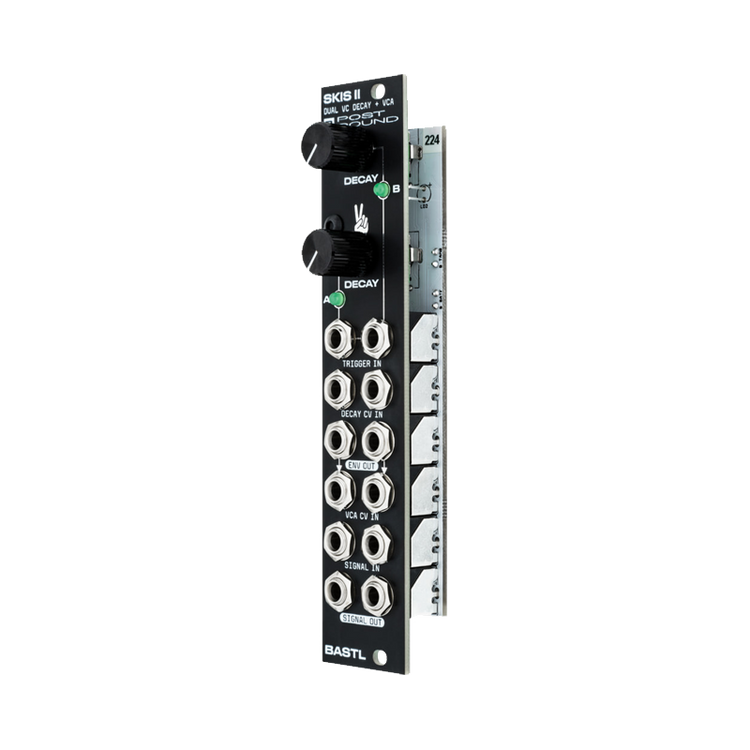

Skis II is a dual voltage controlled decay envelope with a dual VCA. A complete makeover of the original Skis module, Skis II has more robust and cleaner VCA architecture, new dynamic voltage controlled decay envelope and a few more little tweaks.
Both envelopes and VCAs are normalised, but they can be used independently. The decay envelopes are exponential and they can also be set up as release envelopes. Both VCAs are linear.
Skis II is a dual voltage controlled decay envelope with a dual VCA. A complete makeover of the original Skis module, Skis II has more robust and cleaner VCA architecture, new dynamic voltage controlled decay envelope and a few more little tweaks.
Both envelopes and VCAs are normalised, but they can be used independently. The decay envelopes are exponential and they can also be set up as release envelopes. Both VCAs are linear.
- Dual voltage controlled decay envelope
- Decay times range from 8ms to 3s
- Gate/release mode for the envelope (by jumper)
- Normalized triggers
- LED indication of the envelopes
- Dual linear VCA (ENV OUT is normalised to VCA CV IN)
- Tambourine bend jumper

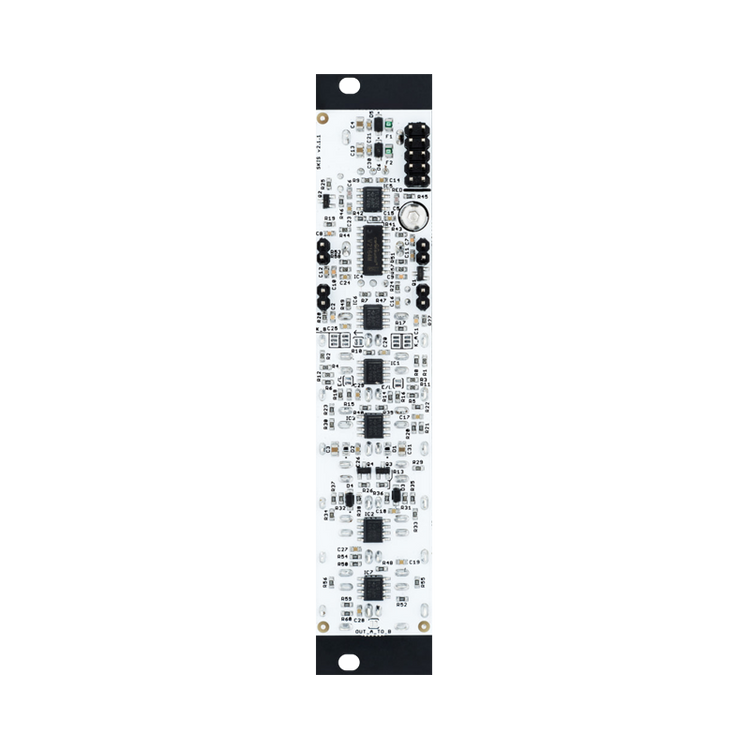

- Solder jumpers for further hacking
Width: 5HP
Max Depth: 24mm
Power: 40mA @+12V, 35mA @-12V, 0mA @+5V
