Schlappi Engineering Three Body - Triple Oscillator
Write a review
- Regular price
- $550.00
- Sale price
- $550.00
- Regular price
-
- Unit price
- per

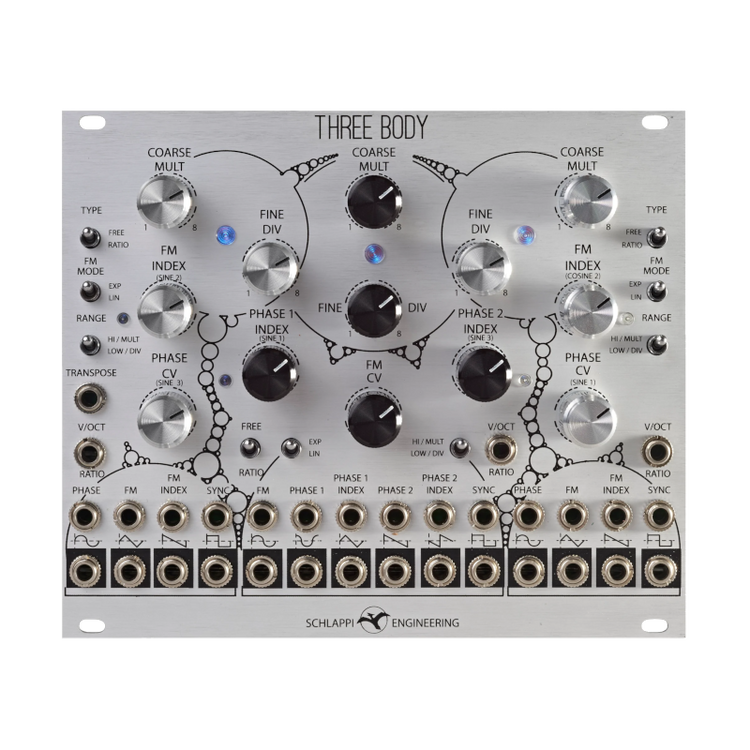

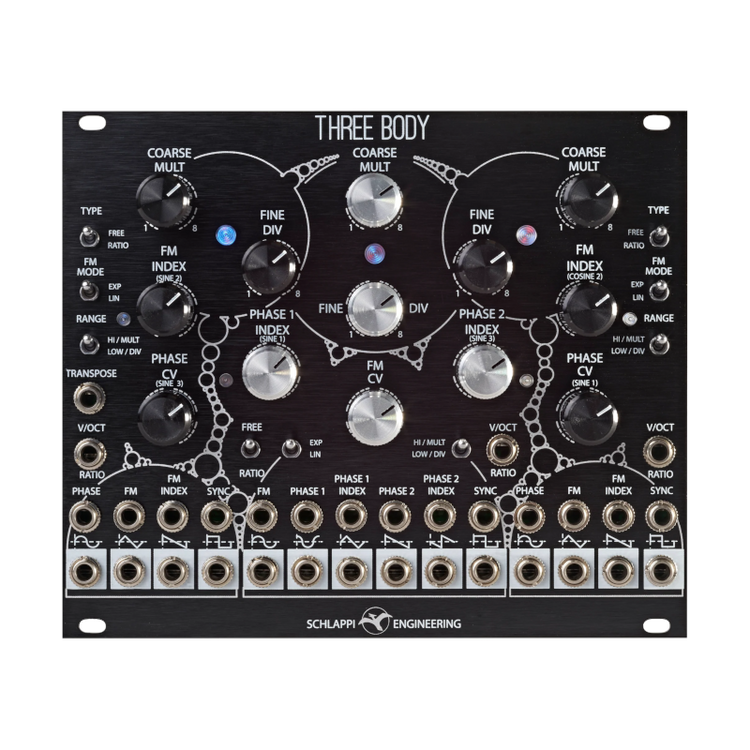

The Three Body is a phase and frequency modulation toolkit, designed to bring digital techniques to an analog interface. It consists of three oscillators which can be used independently but which have normalized connections to facilitate exploration and improvisation.
The Three Body is a phase and frequency modulation toolkit, designed to bring digital techniques to an analog interface. It consists of three oscillators which can be used independently but which have normalized connections to facilitate exploration and improvisation.
The Three Body is a phase and frequency modulation toolkit, designed to bring digital techniques to an analog interface. It consists of three oscillators which can be used independently but...
- Three separate high quality oscillators
- Each oscillator has volts/octave input
- Each oscillator has both a phase and a frequency modulation input
- Each oscillator has a modulation index (VCA) cv input
- Each oscillator has sine, triangle, saw, and square outputs (for a total of 16 outputs)
- The center oscillator has two phase related output pairs for stereo usage (sine and cosine, saw and cosaw)
- Each oscillator can independently be set in a free running or ratio mode
- Each oscillator can have either exponential or linear through zero frequency modulation
- Each oscillator can track external signals at a cv controllable frequency ratio
- Frequency ratios can be cv controlled
- Tracks volts per octave over at least 4 octaves of positive CV and 2 or 3 of negative CV.
- Built around an FPGA core with high internal sample rate for audio rate modulation
Width: 30HP
Max Depth: 30mm
Power:
